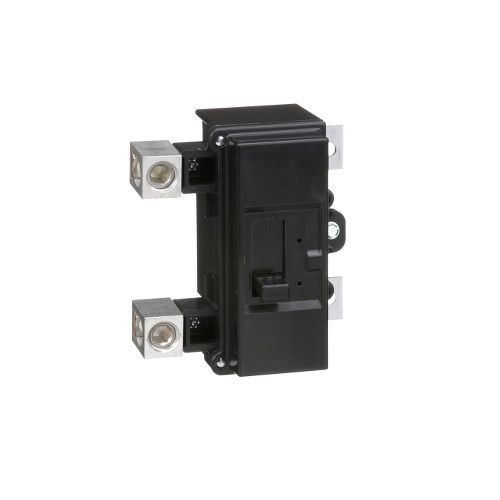

Square D™ QOM2200VH Type QOM2 Standard Miniature Circuit Breaker, 240 VAC, 200 A, 22 kA, 2 Poles, Thermal Magnetic/Long Time/Instantaneous Trip
Square D™ QOM2200VH Type QOM2 Standard Miniature Circuit Breaker, 240 VAC, 200 A, 22 kA, 2 Poles, Thermal Magnetic/Long Time/Instantaneous Trip
SKU: SQDQOM2200VH
Manufacturer Part Number: QOM2200VH
UPC: 785901004066
Features
- 4 AWG to 300 kcmil Al/Cu wire size
Specification
| Frequency Rating | 50/60 Hz |
|---|---|
| Interrupt Rating | 22 kA |
| Mounting Type | Bolt-On |
| Number Of Poles | 2 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 200 A |
| Catalog ID | SQDQOM2200VH |
| Connection Type | Box Lug |
| Dimensions | 5.6 in H x 5.07 in W x 3.6 in D |
| Phase | 1-Phase |
| Temperature Rating | 40 deg C |
| Trip Type | Thermal Magnetic/Long Time/Instantaneous |
| Type | Type QOM2 Standard |
| Voltage Rating | 240 VAC |
| Wire Size | 4 AWG to 300 kcmil |
| Application | For use with convertible main load centers |
| Standard & Approvals | UL Listed, CSA Certified, RoHS Compliant |
