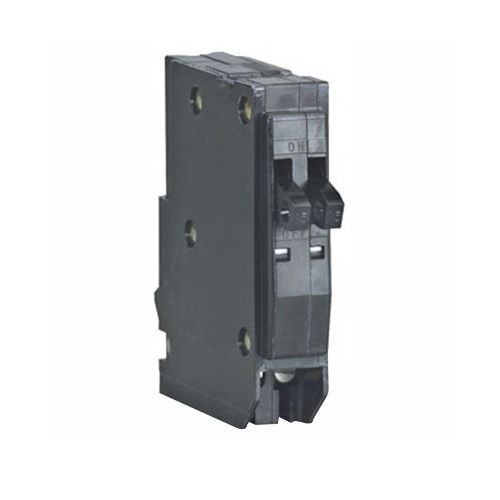

Square D™ QOT Type QOT Tandem Thermal Magnetic Miniature Circuit Breaker, 120/240 VAC, 15 A, 10 kA Interrupt, 1 Pole
Selected QOT1515Square D™ QOT Type QOT Tandem Thermal Magnetic Miniature Circuit Breaker, 120/240 VAC, 15 A, 10 kA Interrupt, 1 Pole
Square D™ QOT Type QOT Tandem Thermal Magnetic Miniature Circuit Breaker, 120/240 VAC, 15 A, 10 kA Interrupt, 1 Pole
SKU: SQDQOT1515
Manufacturer Part Number: QOT1515
Documents
Features
- 1 number of spaces required
- Quick make, quick break mechanism
- It is ideal for QO load centers
- Pressure plate electrical connection
Specification
| Frequency Rating | 50/60 Hz |
|---|---|
| Interrupt Rating | 10 kA |
| Mounting Type | Plug-In |
| Number Of Poles | 1 |
| Phase | 1 |
| Series | QOT |
| Temperature Rating | 40 deg C |
| Trip Type | Long Time and Instantaneous |
| Type | Type QOT Tandem Thermal Magnetic |
| Voltage Rating | 120/240 VAC |
| Wire Size | 12 to 8 AWG/14 to 8 AWG |
| Standard & Approvals | UL Listed, CSA Certified, HACR Rated, RoHS Compliant |
| Amperage Rating | 15 A |
| Dimensions | 3 in H x 0.75 in W x 2.91 in D |
| Connection Type | Screw Clamp |
