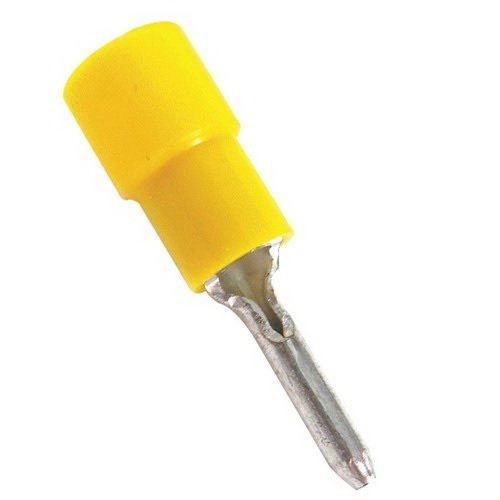

Sta-Kon® 10RC-55PT RC Series Insulated Pin Terminal, 12 to 10 AWG Conductor, 0.106 in Dia x 0.39 in L Pin, Copper, Yellow

Selected Sta-Kon® 10RC-55PT RC Series Insulated Pin Terminal, 12 to 10 AWG Conductor, 0.106 in Dia x 0.39 in L Pin, Copper, Yellow
Sta-Kon® 10RC-55PT RC Series Insulated Pin Terminal, 12 to 10 AWG Conductor, 0.106 in Dia x 0.39 in L Pin, Copper, Yellow

Short Description

Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat-shrinkable terminals, splices and disconnects.

Features

  • Provides an easy and effective way to terminate stranded wire into European/metric-style terminal blocks
  • Vinyl insulated
  • ERG4001 recommended tool
  • Designed to prevent shorting, wire strand loss and/or wire pullout resulting from improper termination of stranded wire
  • Designed to meet emerging global standards which require wire-to-metric style terminal block installations be terminated with a “pin” style terminal
  • Electro-tin plated finish
  • 50 Terminals/Pack

Specification

Material
Copper
Specifications
0.04 in Stock Thickness
Temperature Rating
105 deg C
Type
Insulated
Voltage Rating
300 VAC
Conductor Size
12 to 10 AWG
Color
Yellow
Standard & Approvals
CSA Certified, RoHS Compliant, UL 94 V-0 Flammability Rating, UL E9809 Listed
Application
For Pin-Style Terminal Blocks
Series
RC
Pin Length
0.39 in
Pin Diameter
0.106 in
Overall Length
1.06 in
