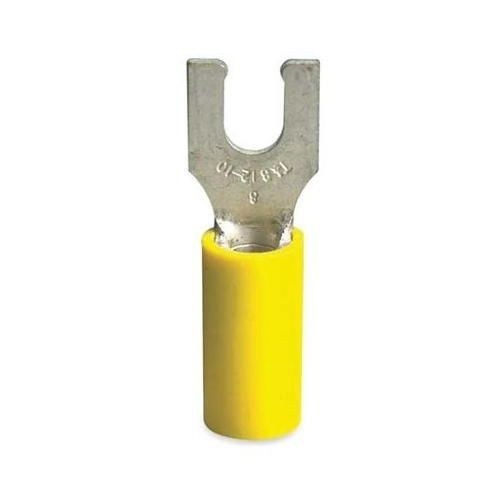

Sta-Kon® 10RC-8FL RC Series Insulated Fork Terminal, 12 to 10 AWG Conductor, 1.09 in L, Brazed Seam/Serrated Barrel, Copper, Yellow

Selected Sta-Kon® 10RC-8FL RC Series Insulated Fork Terminal, 12 to 10 AWG Conductor, 1.09 in L, Brazed Seam/Serrated Barrel, Copper, Yellow
Sta-Kon® 10RC-8FL RC Series Insulated Fork Terminal, 12 to 10 AWG Conductor, 1.09 in L, Brazed Seam/Serrated Barrel, Copper, Yellow

Documents

Short Description

Wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat-shrinkable terminals, splices and disconnects

Features

  • Vinyl-insulated
  • Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring
  • Brazed-seam barrel is serrated for high pull-out value
  • Insulation is color-coded
  • Recommended tools WT112M, WT145C, WT2000, ERG4001, ERG4003
  • 50/Pack, 250/Pack, Standard

Specification

Length
1.09 in
Material
Copper
Minimum Order Qty
50
Order Interval
50
Barrel Type
Brazed Seam
Color
Yellow
Conductor Size
12 to 10 AWG
Finish
Electro-Tin Plated
Series
RC
Stud Size
#8
Temperature Rating
105 deg C
Tongue Size
0.37 in W x 0.04 in THK
Tongue Type
Fork
Type
Insulated Locking
Voltage Rating
600 VAC
Standard & Approvals
CSA Certified, RoHS Compliant, UL 94 V-0 Flammability Rating, E9809 UL Listed
Specifications
0.22 in Dia Maximum Insulation, 0.27 in Clearance
Catalog ID
T-B10RC-8FL
