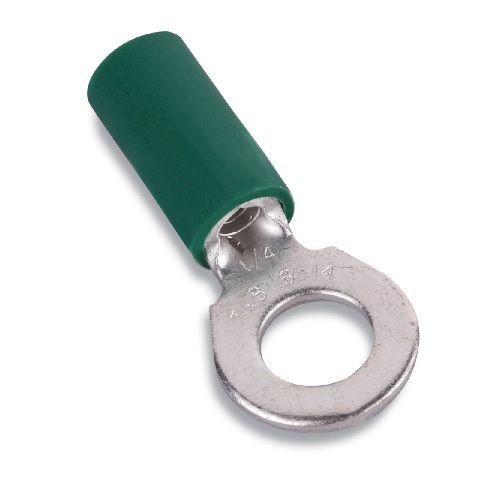

Sta-Kon® 14RBC-516 RB Series Heavy Duty Insulated Ring Terminal, 16 to 14 AWG Conductor, 1.29 in L, Brazed/Overlapped Seam Barrel, Copper, Green

Selected Sta-Kon® 14RBC-516 RB Series Heavy Duty Insulated Ring Terminal, 16 to 14 AWG Conductor, 1.29 in L, Brazed/Overlapped Seam Barrel, Copper, Green
Sta-Kon® 14RBC-516 RB Series Heavy Duty Insulated Ring Terminal, 16 to 14 AWG Conductor, 1.29 in L, Brazed/Overlapped Seam Barrel, Copper, Green

Documents

Short Description

Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat-shrinkable terminals, splices and disconnects.

Features

  • Vinyl insulated, terminal features funneled barrel entry that accepts heavily insulated wire and brazed or overlapping seams for proper electrical flow
  • Deep internal serrations that prevents pullout from vibration and mechanical strain
  • Made of copper and has electro-tin plating for corrosion resistance
  • 50 Pieces/Pack

Specification

Length
1.29 in
Material
Copper
Series
RB Series
Specifications
0.21 in Dia Max Insulation, 0.38 in Clearance, Vinyl Insulation
Temperature Rating
105 deg C
Tongue Size
0.54 in W x 0.03 in THK
Tongue Type
Ring
Type
Heavy Duty Insulated
Voltage Rating
600 VAC
Application
WT2000, ERG4001 Tools
Standard & Approvals
ARRA, Buy American Act and RoHS Compliant, CSA Certified, UL Listed, UL 94 V-0 Flammability Rated
Conductor Size
16 to 14 AWG
Barrel Type
Brazed/Overlapped Seam
Color
Green
Finish
Tin Plated
Stud Size
5/16/2025 12:00:00 AM
