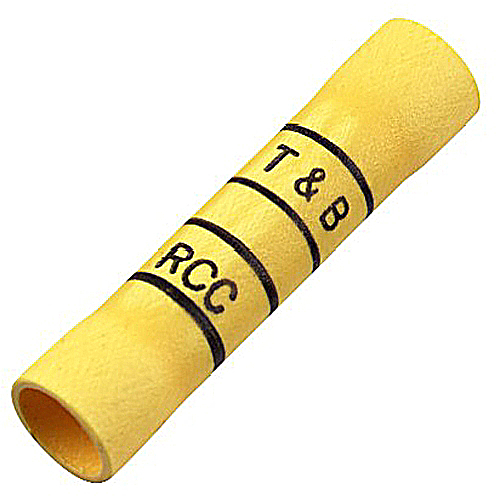

Sta-Kon® 2RC10X Vinyl Insulated Butt Splice Connector, 12 to 10 AWG Conductor, 1.31 in L, Copper, Yellow

Selected Data-Spec SheetSta-Kon® 2RC10X Vinyl Insulated Butt Splice Connector, 12 to 10 AWG Conductor, 1.31 in L, Copper, Yellow
Data-Spec SheetSta-Kon® 2RC10X Vinyl Insulated Butt Splice Connector, 12 to 10 AWG Conductor, 1.31 in L, Copper, Yellow

Documents

Short Description

Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat-shrinkable terminals, splices and disconnects.

Features

  • Expanded vinyl insulated with electro tin plated
  • Wires are butted together and crimped at each end of the splice
  • Color coded according to wire size
  • 50/Pack, 250/Pack, Standard

Specification

Length
1.31 in
Material
Copper
Minimum Order Qty
50
Order Interval
50
Catalog ID
T-B2RC10X
Color
Yellow
Conductor Size
12 to 10 AWG
Dimensions
0.31 in W
Finish
Tin Plated
Series
RC
Specifications
1/4 in Maximum Insulation Dia, 0.04 in Stock
Temperature Rating
105 deg C
Type
Insulated
Voltage Rating
600 VAC
Standard & Approvals
CSA Certified, RoHS Complaint, UL 94 V-0 Flammability Rating, UL Listed
