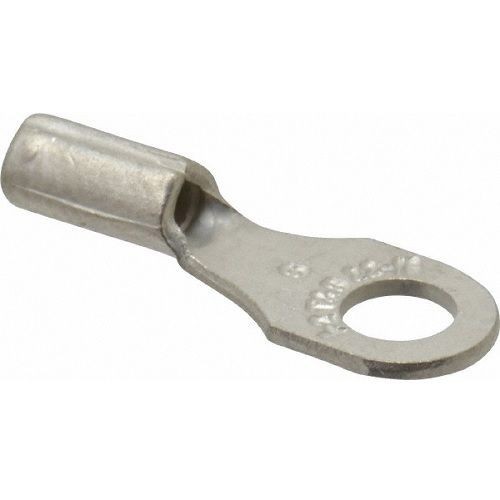

Sta-Kon® A18-10 A Series Non-Insulated Ring Terminal, 22 to 16 AWG Conductor, 3/4 in L, Serrated Barrel, Copper, Metallic

Selected Sta-Kon® A18-10 A Series Non-Insulated Ring Terminal, 22 to 16 AWG Conductor, 3/4 in L, Serrated Barrel, Copper, Metallic
Sta-Kon® A18-10 A Series Non-Insulated Ring Terminal, 22 to 16 AWG Conductor, 3/4 in L, Serrated Barrel, Copper, Metallic

Documents

Short Description

Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat-shrinkable terminals, splices and disconnects.

Features

  • Non-Insulated ring terminals are made of electrolytic copper for high conductivity/corrosion resistance
  • Installed with crimping tools having a single indenter or double indenter (recommended for solid wire)
  • Serrated barrel to increases grip on wire
  • Suitable for use with WT110M, WT111M, WT112M, WT2000, ERG4002 tools
  • 100 Pieces/Pack

Specification

Material
Copper
Series
A
Stud Size
#10
Temperature Rating
150 deg C
Tongue Size
0.31 in W x 0.03 in THK
Tongue Type
Ring
Type
Non-Insulated
Voltage Rating
600 VAC
Standard & Approvals
CSA Certified, RoHS compliant, UL listed, UL 94 V-0 Flammability Rating
Barrel Type
Serrated
Color
Metallic
Finish
Tin Plated
Length
3/4 in
Conductor Size
22 to 16 AWG
Specifications
0.27 in Clearance
