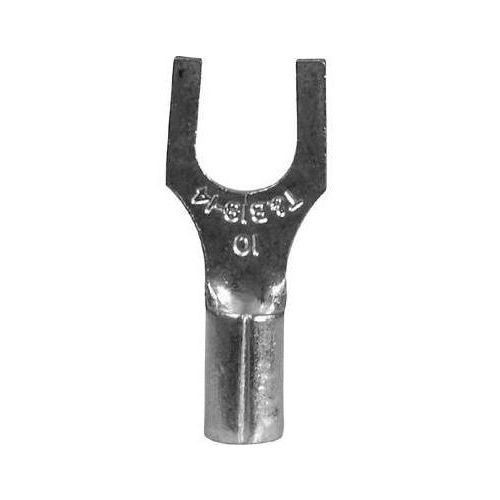

Sta-Kon® B14-6F B Series Non-Insulated Fork Terminal, 18 to 14 AWG Conductor, 3/4 in L, Brazed Seam/Serrated Barrel, Copper, Metallic

Selected T BB14 6F
T BB14 6F

Documents

Short Description

Wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat-shrinkable terminals, splices and disconnects

Features

  • Non-insulated fork terminals are made of electrolytic copper for high conductivity
  • It can be installed with crimping tools having a single indenter or double indenter (recommended for solid wire)
  • Brazed-seam barrel is serrated for high pull-out value
  • Serrated barrel increases grip on wire
  • Recommended tools WT110M, WT111M, WT112M, WT2000, ERG4002
  • Metallic color
  • 100/Pack, 500/Pack, Standard

Specification

Stud Size
#6
Temperature Rating
150 deg C
Tongue Type
Fork
Type
Non-Insulated
Voltage Rating
600 VAC
Standard & Approvals
CSA Certified, RoHS Compliant, UL 94 V-0 Flammability Rating, E9809 UL Listed
Barrel Type
Brazed Seam
Finish
Electro-Tin Plated
Tongue Size
0.31 in W x 0.03 in THK
Specifications
0.27 in Clearance
Series
B
Material
Copper
Length
3/4 in
Conductor Size
18 to 14 AWG
