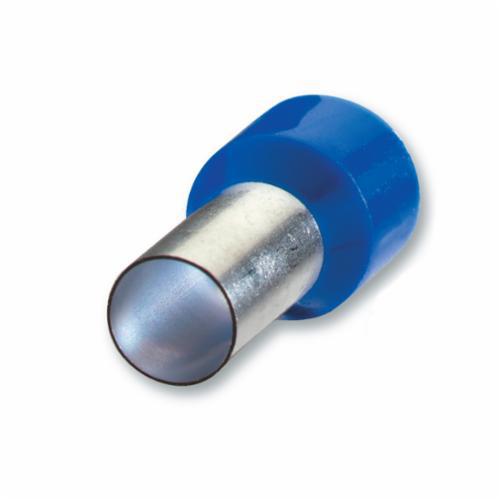

Sta-Kon® F2036 F Series Insulated Wire Ferrule, 14 AWG Stranded Copper Conductor, 0.748 in L, Copper, Blue

Selected F2036Sta-Kon® F2036 F Series Insulated Wire Ferrule, 14 AWG Stranded Copper Conductor, 0.748 in L, Copper, Blue
F2036Sta-Kon® F2036 F Series Insulated Wire Ferrule, 14 AWG Stranded Copper Conductor, 0.748 in L, Copper, Blue

Documents

Short Description

Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat-shrinkable terminals, splices and disconnects

Features

  • Polypropylene insulated
  • Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks
  • 0.165 in base diameter
  • Made of high-conductivity copper
  • Fraying and breaking of wire strands is prevented and the possibility of an unreliable connection is minimized
  • Insulated ferrules prevent conductor breakage due to bending, wire stress or vibration, while facilitating wire insertions into the terminal block clamp
  • Ferrules are the preferred alternative to twisting wire stands or tinning the wire end before terminating into a terminal block
  • Ferrules are thin-walled copper tubes, which are mechanically crimped onto the ends of stranded wires
  • Meets emerging global standards, requiring wire-to-metric style terminal block installations to be terminated with a "pin" style terminal
  • Recommended tools T1, T3 and ERG4
  • 0.006 in Thickness
  • 500/Pack

Specification

Material
Copper
Minimum Order Qty
500
Order Interval
500
Barrel Type
Standard
Color
Blue
Conductor Size
14 AWG
Conductor Type
Stranded Copper
Finish
Tin Plated
Specifications
0.472 in L x 0.091 in Dia Pin
Type
Insulated
Voltage Rating
300 VAC
Standard & Approvals
DIN 46228, Part 4, RoHS Compliant
Temperature Rating
105 deg C
Catalog ID
T-BF2036
Barrel Size
0.165 in Dia
Length
0.748 in
Series
F
