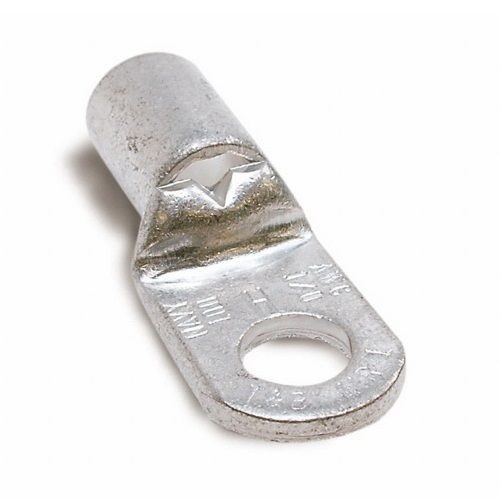

Sta-Kon® G973 G Series Non-Insulated Ring Terminal, 2 AWG Conductor, 1.59 in L, Tubular Barrel, Copper, Metallic

Selected Sta-Kon® G973 G Series Non-Insulated Ring Terminal, 2 AWG Conductor, 1.59 in L, Tubular Barrel, Copper, Metallic
Sta-Kon® G973 G Series Non-Insulated Ring Terminal, 2 AWG Conductor, 1.59 in L, Tubular Barrel, Copper, Metallic

Documents

Short Description

Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat-shrinkable terminals, splices and disconnects.

Features

  • Non-Insulated ring terminals are made of electrolytic copper for high conductivity/corrosion resistance
  • Installed with crimping tools having a single indenter or double indenter (recommended for solid wire)
  • Serrated barrel to increases grip on wire
  • Suitable for use with WT115A, TBM6, TBM6S, WT3185, ERG4008 tools
  • 100 Pieces/Pack

Specification

Length
1.59 in
Material
Copper
Minimum Order Qty
100
Order Interval
100
Barrel Type
Tubular
Color
Metallic
Conductor Size
2/2 AN AWG
Finish
TiN Coated
Series
G
Specifications
0.4 in Clearance
Stud Size
3/8 in
Temperature Rating
150 deg C
Tongue Size
0.69 in W x 0.05 in T
Tongue Type
Ring
Type
Non-Insulated
Voltage Rating
600 VAC
Standard & Approvals
CSA Certified, RoHS compliant, UL listed, UL 94 V-0 Flammability Rating
Catalog ID
T-BG973
