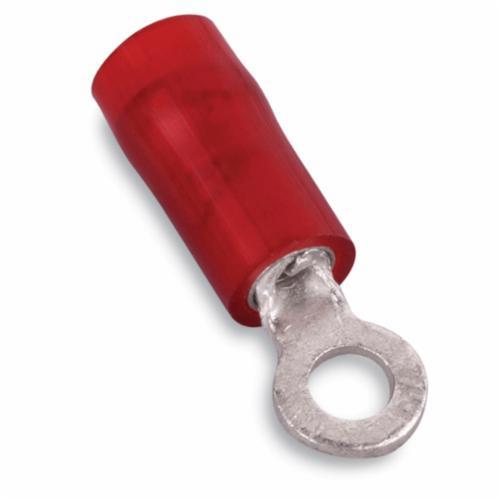

Sta-Kon® RA18-8 RA Series Insulated Ring Terminal, 22 to 16 AWG Conductor, 0.89 in L, Insulation Grip Sleeve Barrel, Copper, Red

Selected RA18-8Sta-Kon® RA18-8 RA Series Insulated Ring Terminal, 22 to 16 AWG Conductor, 0.89 in L, Insulation Grip Sleeve Barrel, Copper, Red
RA18-8Sta-Kon® RA18-8 RA Series Insulated Ring Terminal, 22 to 16 AWG Conductor, 0.89 in L, Insulation Grip Sleeve Barrel, Copper, Red

Documents

Short Description

Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat-shrinkable terminals, splices and disconnects.

Features

  • Nylon insulated, self-insulated with high dielectric-strength nylon sleeves
  • An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep
  • Made of copper and has electro-tin plating for high conductivity/corrosion resistance
  • Suitable for use with WT2000, WT112M, WT145C, ERG4001, ERG4003, WT145A tools
  • 100 Pieces/Pack

Specification

Length
0.89 in
Material
Copper
Minimum Order Qty
100
Order Interval
100
Barrel Type
Brazed/Overlapped Seam
Color
Red
Conductor Size
22 to 16 AWG
Finish
Tin Plated
Stud Size
NO 8
Temperature Rating
105 deg C
Tongue Size
0.31 in W x 0.03 in T
Tongue Type
Ring
Type
Insulated
Voltage Rating
600 VAC
Catalog ID
T-BRA18-8
Standard & Approvals
CSA Certified, RoHS compliant, UL listed, UL 94 V-2 Flammability Rating
Specifications
0.136 in Maximum Insulation Dia, 1/4 in Clearance
Series
RA
