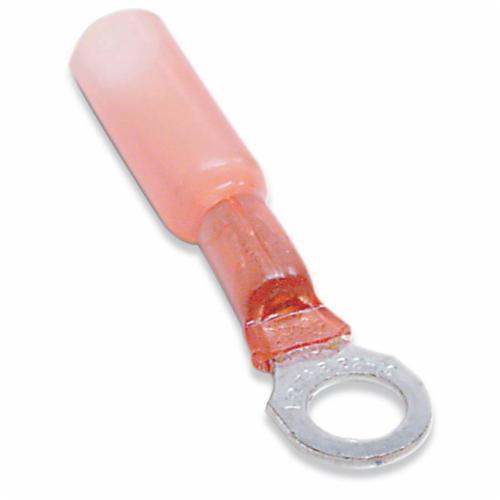

Sta-Kon® RAS18-10X RA Series Heat Shrinkable Insulated Ring Terminal, 22 to 18 AWG Conductor, 1.26 in L, Copper, Red

Selected RAS18-8XSta-Kon® RAS18-6X RA Series Heat Shrinkable Insulated Ring Terminal, 22 to 18 AWG Conductor, 1.23 in L, Copper, Red
RAS18-8XSta-Kon® RAS18-6X RA Series Heat Shrinkable Insulated Ring Terminal, 22 to 18 AWG Conductor, 1.23 in L, Copper, Red

Documents

Short Description

Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat-shrinkable terminals, splices and disconnects.

Features

  • Heat-shrinkable polyolefin terminals are self-insulated
  • Upon completed installation, a fully sealed connection is achieved to protect the joint against the degrading effects of galvanic action, corrosion and environmental exposure
  • Expanded entry
  • Suitable for use with ERG1255 tool
  • 500 Pieces/Pack

Specification

Length
1.26 in
Material
Copper
Series
RA
Specifications
0.17 in Maximum Insulation Dia, 0.27 in Clearance
Stud Size
NO 10
Temperature Rating
105 deg C
Tongue Size
0.31 in W x 0.03 in T
Tongue Type
Ring
Type
Insulated Heat Shrinkable
Voltage Rating
600 VAC
Standard & Approvals
UL Listed
Conductor Size
22 to 18 AWG
Color
Red
Finish
Tin Plated
