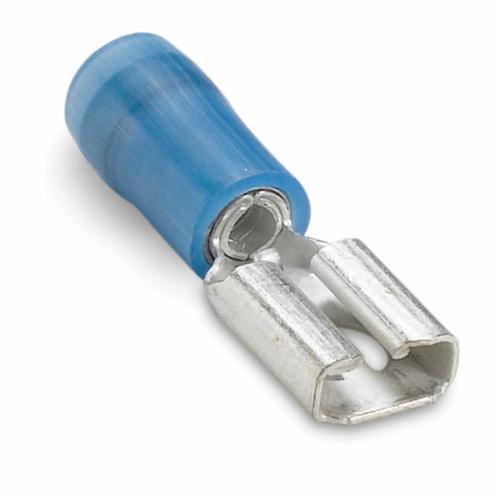

Sta-Kon® RB14-250F Female Disconnect, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Brazed Seam Barrel, Brass, Blue, Insulated

Selected RB2577FSta-Kon® RB14-250F Female Disconnect, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Brazed Seam Barrel, Brass, Blue, Insulated
RB2577FSta-Kon® RB14-250F Female Disconnect, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Brazed Seam Barrel, Brass, Blue, Insulated

Documents

Short Description

Wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat-shrinkable terminals, splices and disconnects

Features

  • Nylon Insulated
  • Unique construction of the female disconnect offers long-term dependability
  • Funnel-entry insulators enable easier inserting of wire into barrel
  • Brazed seam serrated barrel provides maximum tensile strength
  • Suitable for use with WT145C, WT2000, WT112M, ERG4001, ERG4003 tools
  • Color-coded for easy installation
  • 100 Pieces/Pack, 500/Pack, Standard

Specification

Material
Brass with Copper
Series
250
Specifications
0.162 in Maximum Insulation Dia, 0.3 in Stock Thickness
Tab Size
0.25 in W x 0.032 in T
Temperature Rating
105 deg C
Terminal Type
Crimp
Type
Insulated
Voltage Rating
600 VAC
Standard & Approvals
CSA Certified, RoHS Certified, UL 94 V-2 Flammability Rating, UL Listed
Conductor Size
16 to 14 AWG
Dimensions
0.91 in L x 0.29 in W
Barrel Type
Brazed Seam
Color
Blue
Finish
Electro-Tin Plated
