Sta-Kon® RB857 RB Series Insulated Ring Terminal, 18 to 14 AWG Conductor, 0.97 in L, Brazed Seam Barrel, Copper, Blue

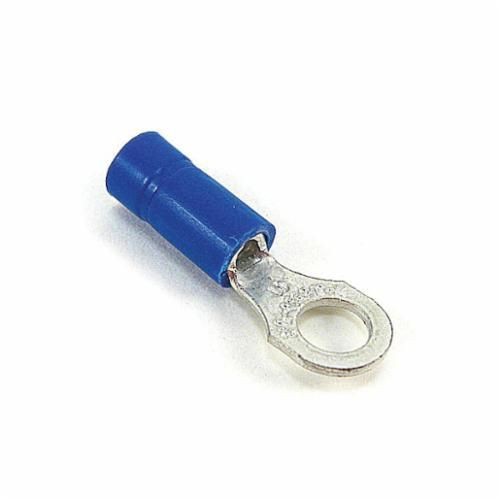

Selected RB867Sta-Kon® RB737 RB Series Insulated Ring Terminal, 18 to 14 AWG Conductor, 1.16 in L, Brazed Seam Barrel, Copper, Blue
RB867Sta-Kon® RB737 RB Series Insulated Ring Terminal, 18 to 14 AWG Conductor, 1.16 in L, Brazed Seam Barrel, Copper, Blue

Documents

Short Description

Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat-shrinkable terminals, splices and disconnects.

Features

  • Terminals are self-insulated with a PVC (Vinyl) insulation sleeve of extra length to give protection and relieve bending stress at wire's flex point
  • Brazed seam barrel that is serrated to obtain high pullout value
  • Made of copper and has electro-tin plating for corrosion resistance
  • Suitable for use with WT145C, WT2000, WT112M, ERG4001, ERG4003 tools
  • 1000 Pieces/Pack

Specification

Length
0.97 in
Material
Copper
Minimum Order Qty
1000
Order Interval
1000
Barrel Type
Brazed Seam
Catalog ID
T-BRB857
Color
Blue
Conductor Size
18 to 14 AWG
Series
RB
Specifications
0.17 in Dia Maximum Insulation, 0.27 in Clearance
Stud Size
#6
Temperature Rating
105 deg C
Tongue Size
0.31 in W x 0.03 in THK
Tongue Type
Ring
Type
Insulated
Voltage Rating
600 VAC
Standard & Approvals
CSA Certified, RoHS compliant, UL listed, UL 94 V-0 Flammability Rating
Finish
Tin Plated
