Sta-Kon® RB873 RB Series Insulated Ring Terminal, 18 to 14 AWG Conductor, 0.89 in L, Insulation Grip Sleeve Barrel, Copper, Blue

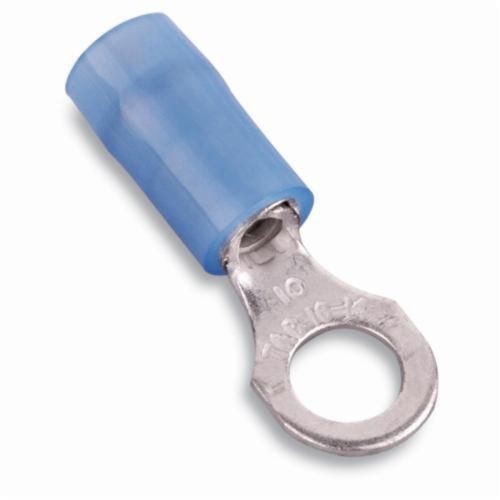

Selected RB863MSta-Kon® RB1333 RB Series Insulated Ring Terminal, 18 to 14 AWG Conductor, 0.74 in L, Insulation Grip Sleeve Barrel, Copper, Blue
RB863MSta-Kon® RB1333 RB Series Insulated Ring Terminal, 18 to 14 AWG Conductor, 0.74 in L, Insulation Grip Sleeve Barrel, Copper, Blue

Documents

Short Description

Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat-shrinkable terminals, splices and disconnects.

Features

  • Nylon insulated, self-insulated with high dielectric-strength nylon sleeves
  • An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep
  • Made of copper and has electro-tin plating for high conductivity/corrosion resistance
  • Suitable for use with WT145C, WT2000, WT112M, ERG4001, ERG4003 tools
  • 1000 Piece/Pack

Specification

Length
0.89 in
Material
Copper
Series
RB
Specifications
0.162 in Dia Maximum Insulation, 1/4 in Clearance
Stud Size
#10
Temperature Rating
105 deg C
Tongue Size
0.31 in W
Tongue Type
Ring
Type
Insulated
Voltage Rating
600 VAC
Standard & Approvals
CSA Certified, RoHS compliant, UL listed, UL 94 V-2 Flammability Rating
Conductor Size
18 to 14 AWG
Barrel Type
Insulation Grip Sleeve
Color
Blue
Finish
Tin Plated
