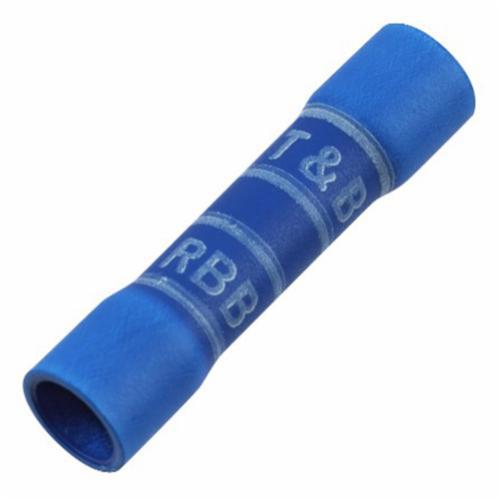

Sta-Kon® RBB217 Vinyl Insulated Butt Splice Connector, 16 to 14 AWG Conductor, 1.13 in L, Copper, Blue

Selected RBB217Sta-Kon® RBB217 Vinyl Insulated Butt Splice Connector, 16 to 14 AWG Conductor, 1.13 in L, Copper, Blue
RBB217Sta-Kon® RBB217 Vinyl Insulated Butt Splice Connector, 16 to 14 AWG Conductor, 1.13 in L, Copper, Blue

Documents

Short Description

Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat-shrinkable terminals, splices and disconnects.

Features

  • Expanded vinyl insulated with electro tin plated
  • Wires are butted together and crimped at each end of the splice
  • Color coded according to wire size
  • 1000/Pack, 10000/Pack, Bulk

Specification

Length
1.13 in
Material
Copper
Minimum Order Qty
1000
Order Interval
1000
Color
Blue
Conductor Size
16 to 14 AWG
Finish
Tin Plated
Temperature Rating
105 deg C
Type
Insulated
Voltage Rating
600 VAC
Standard & Approvals
CSA Certified, RoHS Complaint, UL 94 V-0 Flammability Rating, UL Listed
Series
RBB
Dimensions
0.23 in W
Catalog ID
T-BRBB217
Specifications
0.2 in Maximum Insulation Dia, 0.03 Stock
