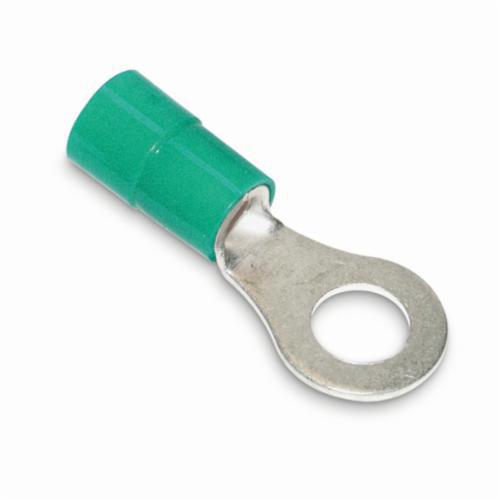

Sta-Kon® RBC14-38 RB Series Heavy Duty Insulated Ring Terminal, 16 to 14 AWG Conductor, 1.26 in L, Brazed/Overlapped Seam Barrel, Copper, Green

Selected RBC14-38Sta-Kon® RBC14-38 RB Series Heavy Duty Insulated Ring Terminal, 16 to 14 AWG Conductor, 1.26 in L, Brazed/Overlapped Seam Barrel, Copper, Green
RBC14-38Sta-Kon® RBC14-38 RB Series Heavy Duty Insulated Ring Terminal, 16 to 14 AWG Conductor, 1.26 in L, Brazed/Overlapped Seam Barrel, Copper, Green

Documents

Short Description

Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat-shrinkable terminals, splices and disconnects.

Features

  • Nylon insulated
  • Funneled barrel entry
  • Deep internal serrations
  • Made of copper and has electro-tin plating for corrosion resistance
  • Suitable for use with WT2000, ERG4001, WT2130A tools
  • 50 Pieces/Pack

Specification

Length
1.26 in
Material
Copper
Minimum Order Qty
50
Order Interval
50
Barrel Type
Brazed/Overlapped Seam
Catalog ID
T-BRBC14-38
Color
Green
Conductor Size
16 to 14 AWG
Series
RBC
Specifications
0.21 in Dia Maximum Insulation, 0.38 in Clearance
Stud Size
3/8 in
Temperature Rating
105 deg C
Tongue Size
0.63 in W x 0.03 in THK
Tongue Type
Ring
Type
Insulated Heavy Duty
Voltage Rating
600 VAC
Standard & Approvals
CSA Certified, RoHS compliant, UL listed, UL 94 V-2 Flammability Rating
Finish
Tin Plated
