Sta-Kon® RC10-6FL RC Series Insulated Fork Terminal, 12 to 10 AWG Conductor, 0.97 in L, Brazed Seam/Serrated Barrel, Copper, Yellow

Selected RC2223Sta-Kon® RC10-8FL RC Series Insulated Fork Terminal, 12 to 10 AWG Conductor, 1 in L, Brazed Seam/Serrated Barrel, Copper, Yellow

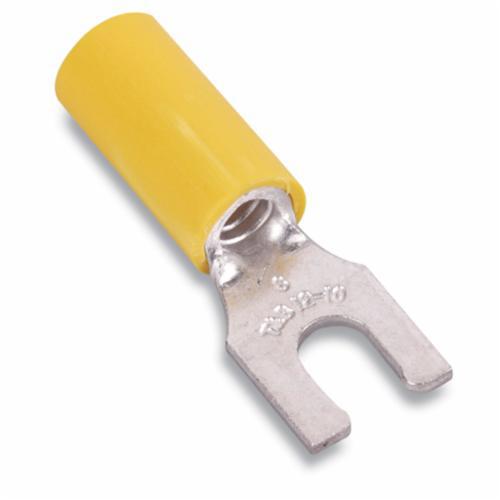

RC2223Sta-Kon® RC10-8FL RC Series Insulated Fork Terminal, 12 to 10 AWG Conductor, 1 in L, Brazed Seam/Serrated Barrel, Copper, Yellow

Documents

Short Description

Wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat-shrinkable terminals, splices and disconnects

Features

  • Nylon insulated
  • Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring
  • Brazed-seam barrel is serrated for high pull-out value
  • Insulation is color-coded
  • Recommended tools WT112M, WT145A, WT145C, WT2000, ERG4001, ERG4003
  • 50/Pack, 250/Pack, Standard

Specification

Length
0.97 in
Material
Copper
Series
RC
Specifications
0.21 in Dia Maximum Insulation, 0.27 in Clearance
Stud Size
NO 6
Temperature Rating
105 deg C
Tongue Size
0.31 in W x 0.04 in T
Tongue Type
Fork
Type
Insulated Locking
Voltage Rating
600 VAC
Standard & Approvals
CSA Certified, RoHS Compliant, UL 94 V-2 Flammability Rating , UL E9809 Listed
Conductor Size
12 to 10 AWG
Barrel Type
Brazed Seam
Color
Yellow
Finish
Electro-Tin Plated
