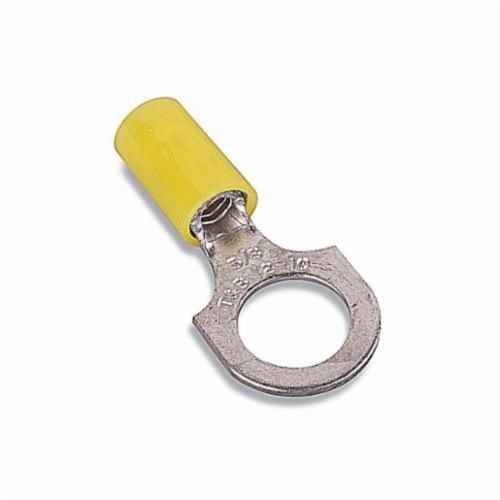

Sta-Kon® RC363 RC Series Insulated Ring Terminal, 12 to 10 AWG Conductor, 1 in L, Insulation Grip Sleeve Barrel, Copper, Yellow

Selected Sta-Kon® RC363 RC Series Insulated Ring Terminal, 12 to 10 AWG Conductor, 1 in L, Insulation Grip Sleeve Barrel, Copper, Yellow
Sta-Kon® RC363 RC Series Insulated Ring Terminal, 12 to 10 AWG Conductor, 1 in L, Insulation Grip Sleeve Barrel, Copper, Yellow

Short Description

Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat-shrinkable terminals, splices and disconnects.

Features

  • Self-insulated with high dielectric strength nylon sleeves
  • An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep
  • Made of copper and has electro-tin plating for high conductivity/corrosion resistance
  • 500 Pieces/Pack

Specification

Length
1 in
Material
Copper
Minimum Order Qty
1
Order Interval
1
Barrel Type
Insulation Grip Sleeve
Color
Yellow
Conductor Size
12 to 10 AWG
Finish
Tin Plated
Stud Size
#10
Temperature Rating
105 deg C
Tongue Type
Ring
Type
Insulated
Voltage Rating
600 VAC
Application
WT2000, WT112M, WT145C, ERG4001, ERG4003, WT145A Tools
Tongue Size
0.37 in W x 0.04 in THK
Series
RC Series
Catalog ID
T-BRC363
Standard & Approvals
ARRA, Buy American Act and RoHS Compliant, CSA Certified, UL Listed, UL 94 V-2 Flammability Rated, UL File No. E9809
Specifications
0.21 in Dia Max Insulation, 0.27 in Clearance, Nylon Insulation
