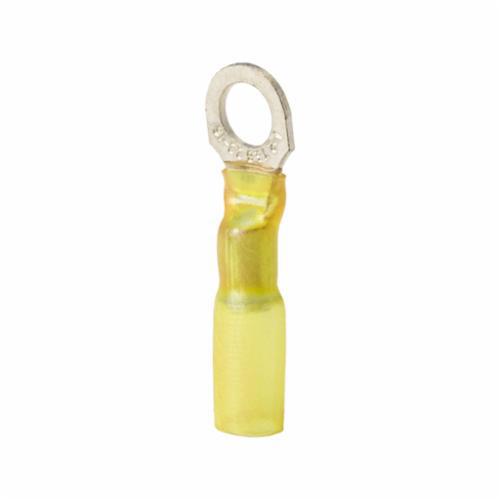

Sta-Kon® RCS10-6X RC Series Heat Shrinkable Insulated Ring Terminal, 12 to 10 AWG Conductor, 1.34 in L, Copper, Yellow

Selected RCS10-6XSta-Kon® RCS10-10X RC Series Heat Shrinkable Insulated Ring Terminal, 12 to 10 AWG Conductor, 1.34 in L, Copper, Yellow
RCS10-6XSta-Kon® RCS10-10X RC Series Heat Shrinkable Insulated Ring Terminal, 12 to 10 AWG Conductor, 1.34 in L, Copper, Yellow

Documents

Short Description

Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat-shrinkable terminals, splices and disconnects.

Features

  • Heat-shrinkable polyolefin terminals are self-insulated
  • Upon completed installation, a fully sealed connection is achieved to protect the joint against the degrading effects of galvanic action, corrosion and environmental exposure
  • Expanded entry
  • Suitable for use with ERG1255 tool
  • 50 Pieces/Pack

Specification

Standard & Approvals
UL Listed
Stud Size
NO 6
Temperature Rating
105 deg C
Tongue Size
0.31 in W x 0.04 in T
Tongue Type
Ring
Voltage Rating
600 VAC
Conductor Size
12 to 10 AWG
Type
Insulated Heat Shrinkable
Finish
Tin Plated
Length
1.34 in
Specifications
1/4 in Maximum Insulation Dia, 0.27 in Clearance
Color
Yellow
Material
Copper
Series
RCS
