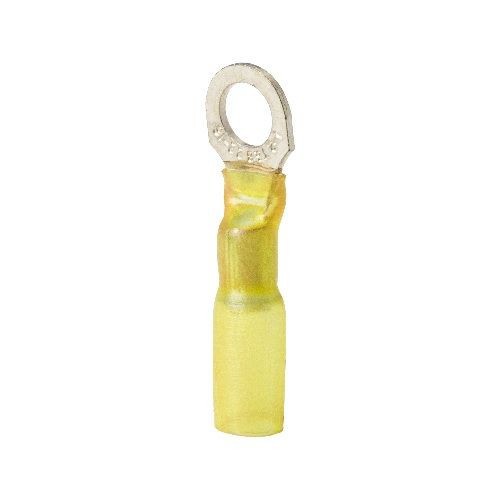

Sta-Kon® RCS10-8X RC Series Heat Shrinkable Insulated Ring Terminal, 12 to 10 AWG Conductor, 1.34 in L, Copper, Yellow

Selected Sta-Kon® RCS10-8X RC Series Heat Shrinkable Insulated Ring Terminal, 12 to 10 AWG Conductor, 1.34 in L, Copper, Yellow
Sta-Kon® RCS10-8X RC Series Heat Shrinkable Insulated Ring Terminal, 12 to 10 AWG Conductor, 1.34 in L, Copper, Yellow

Short Description

Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat-shrinkable terminals, splices and disconnects.

Features

  • Heat shrinkable polyolefin terminals are self-insulated
  • Upon completed installation, a fully sealed connection is achieved to protect the joint against the degrading effects of galvanic action, corrosion and environmental exposure
  • Expanded entry
  • 50 Pieces/Pack

Specification

Length
1.34
Material
Copper
Minimum Order Qty
1
Order Interval
1
Catalog ID
T-BRCS10-8X
Color
Yellow
Conductor Size
12 to 10 AWG
Finish
Tin Plated
Series
RC Series
Specifications
1/4 in Dia Max Insulation, 0.27 in Clearance
Stud Size
#8
Temperature Rating
105
Tongue Size
0.37 in W x 0.04 in THK
Tongue Type
Ring
Type
Heat Shrinkable Insulated
Voltage Rating
600 V
Application
ERG1255 Tools
Standard & Approvals
ARRA, Buy American Act and RoHS Compliant, UL Listed
