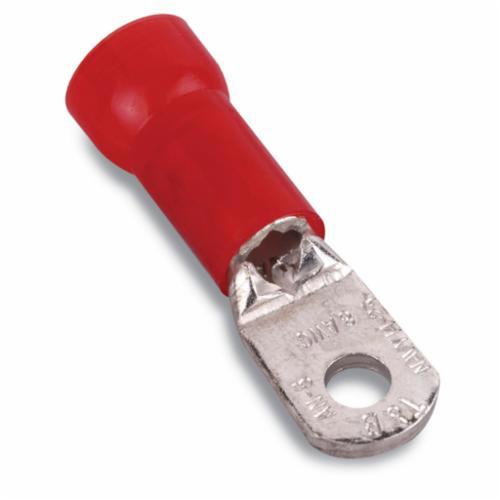

Sta-Kon® RD727 RD Series Insulated Ring Terminal, 8 AWG Conductor, 1.63 in L, Brazed/Overlapped Seam Barrel, Copper, Red

Selected RD737Sta-Kon® RD727 RD Series Insulated Ring Terminal, 8 AWG Conductor, 1.63 in L, Brazed/Overlapped Seam Barrel, Copper, Red
RD737Sta-Kon® RD727 RD Series Insulated Ring Terminal, 8 AWG Conductor, 1.63 in L, Brazed/Overlapped Seam Barrel, Copper, Red

Documents

Short Description

Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat-shrinkable terminals, splices and disconnects.

Features

  • Nylon insulated
  • Funneled barrel entry
  • Deep internal serrations
  • Made of copper and has electro-tin plating for corrosion resistance
  • Suitable for use with ERG4007 tools
  • 200 Pieces/Pack

Specification

Length
1.63 in
Material
Copper
Series
RD
Specifications
0.34 in Maximum Insulation Dia, 0.36 in Clearance
Stud Size
5/16 in
Temperature Rating
105 deg C
Tongue Size
0.57 in W x 0.04 in T
Tongue Type
Ring
Type
Insulated Large
Voltage Rating
600 VAC
Standard & Approvals
CSA Certified, RoHS compliant, UL listed, UL 94 V-2 Flammability Rating
Conductor Size
8 AWG
Barrel Type
Brazed/Overlapped Seam
Color
Red
Finish
Tin Plated
