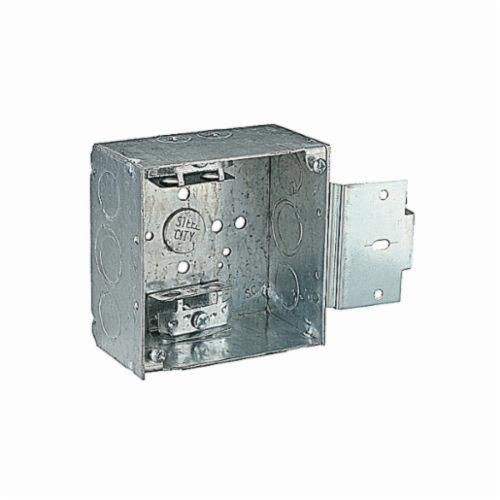

Steel City® 52171-MSX Outlet Box, Steel, 30.3 cu-in Capacity, 1 Outlets, 11 Knockouts, 4 in H x 4 in W x 2-1/8 in D

Selected 52171-MSXSteel City® 52171-MSX Outlet Box, Steel, 30.3 cu-in Capacity, 1 Outlets, 11 Knockouts, 4 in H x 4 in W x 2-1/8 in D
52171-MSXSteel City® 52171-MSX Outlet Box, Steel, 30.3 cu-in Capacity, 1 Outlets, 11 Knockouts, 4 in H x 4 in W x 2-1/8 in D

Documents

Short Description

Steel City metallic outlet boxes and accessories provide innovative and efficient solutions for electrical rough-in. Save time and labor by shipping prefabricated, ready-to-install assemblies of Steel City boxes, covers, fittings and brackets directly to the job site. Steel City's innovative bracket designs simplify the process of positioning and mounting electrical outlet boxes.

Features

  • Welded construction
  • Side knockouts: (2) 1/2 in, (1) 1/2 in and 3/4 E
  • Bottom knockouts: (1) 1/2 in
  • Accepts all standard device covers and tile rings and is available in all box sizes and conduit styles
  • Center mark locator window enables accurate positioning
  • Patented bracket design has teeth that sink into the stud for a secure installation and mounts to open and closed side of stud, providing flexibility
  • "MS" bracket boxes are the fastest metal stud install in the industry

Specification

Knockout Size
1/2 and 3/4 in
Material
Steel
Number of Knockouts
4
Shape
Square
Application
For use with armored/metal clad cable
Standard & Approvals
UL E2969, RoHS Compliant
Dimensions
4 in H x 4 in W x 2-1/8 in D
Cable Entry
Knockouts
Capacity
30.3 cu-in
Finish
Pre-Galvanized
Includes
Metal Stud Bracket and Armored (C-3) Cable Clamp
