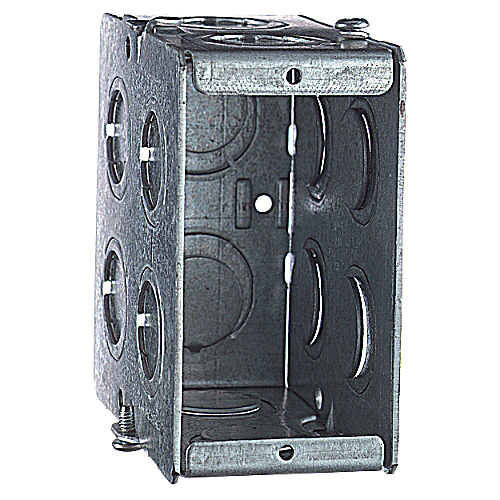

Steel City® GW-135-G Gangable Masonry Box, Steel, 22 cu-in Capacity, 1 Gang, 1 Outlets, 22 Knockouts

Selected Data-Spec SheetSteel City® GW-135-G Gangable Masonry Box, Steel, 22 cu-in Capacity, 1 Gang, 1 Outlets, 22 Knockouts
Data-Spec SheetSteel City® GW-135-G Gangable Masonry Box, Steel, 22 cu-in Capacity, 1 Gang, 1 Outlets, 22 Knockouts

Documents

Short Description

Steel City metallic outlet boxes and accessories provide innovative and efficient solutions for electrical rough-in. Save time and labor by shipping prefabricated, ready-to-install assemblies of Steel City boxes, covers, fittings and brackets directly to the job site. Steel City's innovative bracket designs simplify the process of positioning and mounting electrical outlet boxes.

Features

  • Each side knockouts(Conduit): (4) 1/2 and 3/4 in
  • Each end knockouts (Conduit): (2) 1/2 and 3/4 in
  • Bottom knockouts(Conduit): (2) 1/2 and 3/4 in

Specification

Knockout Size
1/2 and 3/4 in
Material
Steel
Mounting Type
Threaded
Number of Gangs
1
Number of Knockouts
8
Minimum Order Qty
1
Order Interval
1
Cable Entry
Knockouts
Capacity
22 cu-in
Catalog ID
S-CGW135-G
Dimensions
3-3/4 in L x 1-15/16 in W x 3-1/2 in D
Finish
Electro Galvanized
Series
GW
Type
Gangable
Application
For use with conduits
Standard & Approvals
UL E2969, CSA 5043, RoHS Compliant
