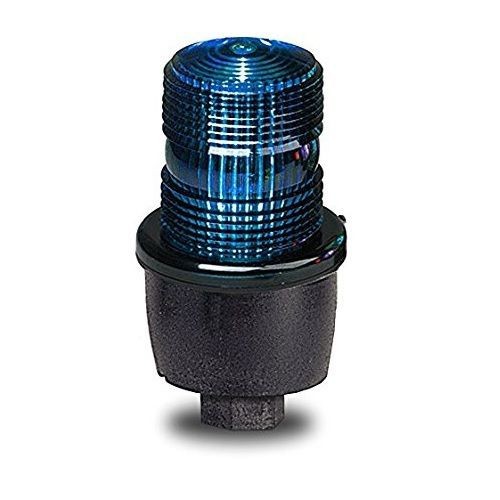

Federal Signal StreamLine® LP3PL-120B Low Profile Light, 120 VAC, LED Lamp, 3.13 in Dia, Surface Mount, Blue

Selected LP3PL-120BFederal Signal StreamLine® LP3PL-120B Low Profile Light, 120 VAC, LED Lamp, 3.13 in Dia, Surface Mount, Blue
LP3PL-120BFederal Signal StreamLine® LP3PL-120B Low Profile Light, 120 VAC, LED Lamp, 3.13 in Dia, Surface Mount, Blue

Short Description

Federal Signal introduces the Model LP3L low profile LED light. The Type 4X light is available in five LED/lens color combinations; Amber, Blue, Clear, Green and Red. All LP3 models feature the easy access screw on lens. The LP3L is offered in four mounting configurations; LP3PL with an integrated 1/2 in NPT pipe mount, LP3ML features an integrated 1/2 in NPT male pipe mount, LP3TL features a T formation base with 2 mounting holes for wall or flush mounting and the LP3SL features a three hole surface mounting configuration. The T-mount and Surface mount units include surface gaskets to maintain the 4X installation. The LP3L series is available in 24VDC and 120VAC. All models include the vibration resistant, double contact bayonet style 100,000 hour LED module. Like all StreamLine® products, the LP3L is designed with OEM applications in mind. It is economical, easy to install and attractive. Careful consideration has been given to the relationship between the LED light source and the lens design for maximum light output.

Features

  • Screw on lens
  • Optional wire lens guard
  • PLC compatible
  • Compact, economical and flexible

Specification

Housing Material
Polycarbonate
Lamp Type
LED Array
Lens Color
Blue
Mounting Type
Surface
NEMA Rating
NEMA 4X
Minimum Order Qty
1
Order Interval
1
Video
https://www.youtube.com/watch?v=qWpC3CNzGlE
Amperage Rating
0.13 A
Average Life
100000 hr
Catalog ID
FEDLP3PL-120B
Diameter
3.13 in
Dimensions
3.13 in W x 3.13 in D x 5.7 in H
Shape
Dome
Temperature Rating
-31 to 150 deg F
Type
Low Profile
Voltage Rating
120 VAC
Application
For indoor and outdoor applications
Standard & Approvals
UL, cUL Listed, CSA Certified
