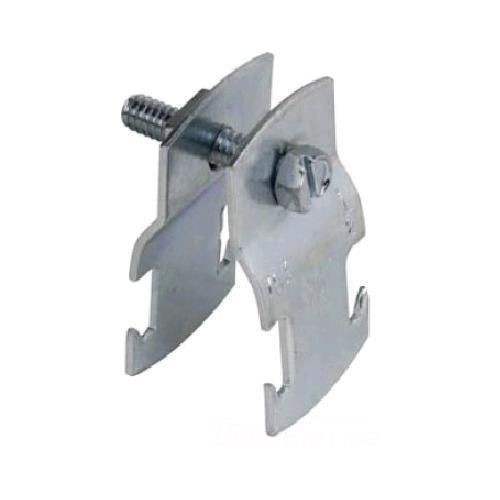

Superstrut® 703-1EG Universal Conduit and Cable Clamp, 1 in Conduit, 550 lb Load, 1.163 to 1.315 in OD, Steel

Selected Superstrut® 703-1EG Universal Conduit and Cable Clamp, 1 in Conduit, 550 lb Load, 1.163 to 1.315 in OD, Steel
Superstrut® 703-1EG Universal Conduit and Cable Clamp, 1 in Conduit, 550 lb Load, 1.163 to 1.315 in OD, Steel

Documents

Short Description

Superstrut®, with a full compliment of fittings, hardware and accessories to complete any metal framing job, is the only system of Its kind to provide multiple finishes for total corrosion protection.

Features

  • Bolt head is combination slot and hex head for flexibility of attachment
  • Square nut is captivated on the shoulder for easy one-handed tightening
  • Straps are interchangeable with 1-1/2 in strut, for broader application
  • Straps are shipped assembled so counting and sorting are easier
  • Pipe and conduit sizes are shown on the strap for easy identification
  • Safety factor 3
  • Silver Galvanized/Electro Galvanized finish

Specification

Material
Steel
Mounting Type
Channel
Outside Diameter
1.163 to 1.315 in
Minimum Order Qty
1
Order Interval
1
Conduit Size
1 in
Standard & Approvals
RoHS Compliant
Application
Designed to be twist inserted anywhere along the slot side of the channel
Suitable For Use With
Rigid or IMC Conduit, Pipe and Electrical Metal Tubing
Specifications
14 ga THK
Finish
Electro Galvanized
Catalog ID
S-S703-1-EG
Load Capacity
550 lb
