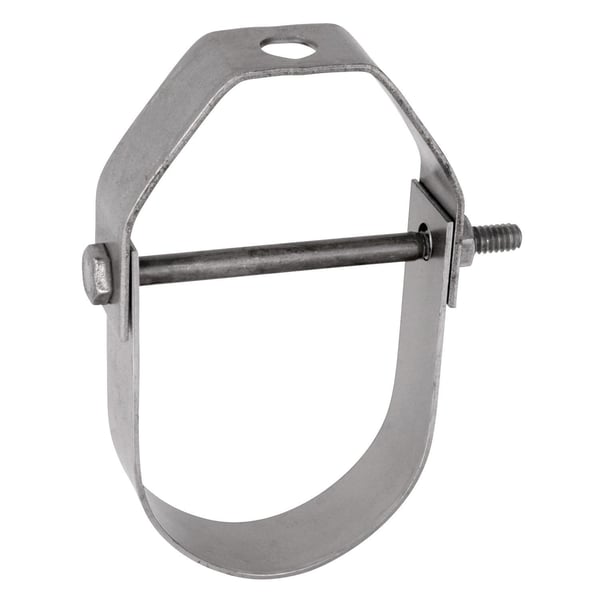

Superstrut® C710-3/4-EG C-710 Adjustable Clevis Hanger, 3/4 in Pipe, 3/8 in Rod, 610 lb Load, Carbon Steel, Electro-Galvanized

Selected S SC710 3 4 EG IDEA
S SC710 3 4 EG IDEA

Documents

Short Description

Designed to support non-insulated, stationary lines from above allowing for approximately 1 to 1-1/2 in of vertical adjustment after the pipe is in place. The lower nut (not furnished) adjusts the pipe line to the proper elevation, the top nut (not furnished) prevents loosening due to vibration and must be tightened securely to assure proper hanger performance.

Specification

Load Capacity
610 lb
Material
Carbon Steel
Pipe Size
3/4 in
Rod Size
3/8 in
Series
C-710
Specifications
1/8 x 1 in Upper, 1/8 x 1 in Lower
Suitable For Use With
Pipe
Temperature Rating
650 deg F
Type
Adjustable
Standard & Approvals
ARRA Compliant, BAA Compliant, Federal A-A-1192A Type 1, BSPSS-BS3974, MSS-SP-69 Type 1, FM Approved, RoHS Compliant, UL Listed
Finish
Electro Galvanized
