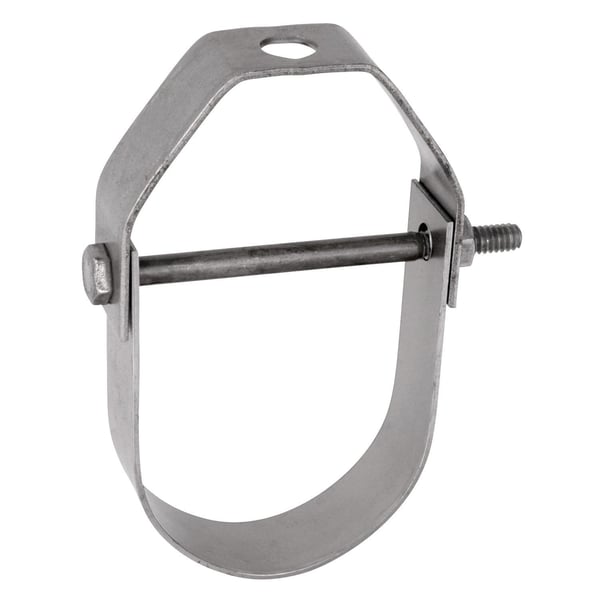

Superstrut® CL710-4 CL-710 Light Duty Adjustable Clevis Hanger, 4 in Pipe, 5/8 in Rod, 400 lb Load, Carbon Steel, GoldGalv®

Selected S SCL710 4 IDEA
S SCL710 4 IDEA

Documents

Short Description

Designed to support non-insulated, stationary lines from above allowing for approximately 1 to 1-1/2 in of vertical adjustment after the pipe is in place. The lower nut (not furnished) adjusts the pipe line to the proper elevation, the top nut (not furnished) prevents loosening due to vibration and must be tightened securely to assure proper hanger performance.

Specification

Load Capacity
400 lb
Material
Carbon Steel
Minimum Order Qty
1
Order Interval
1
Catalog ID
S-SCL710-4
Dimensions
7-7/8 in H
Finish
GoldGalv®
Pipe Size
4 in
Rod Size
5/8 in
Standard & Approvals
ARRA Compliant, BAA Compliant, Federal A-A-1192A Type 1, MSS-SP-69 Type 1, RoHS Compliant
Type
Light Duty Adjustable
Suitable For Use With
Pipe
Series
CL-710
