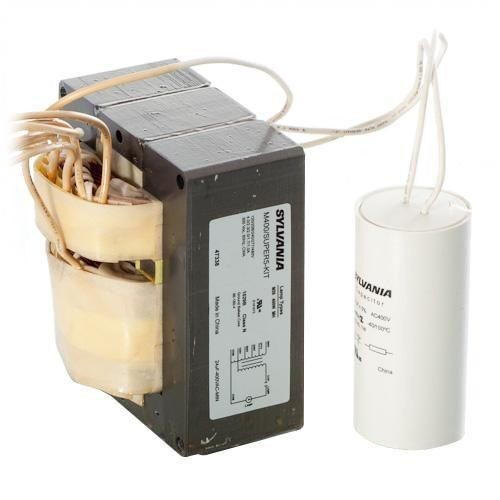

Sylvania M400/SUPER5-PS-KIT/47400 5-Tap Magnetic Core and Coil Ballast, HID Metal Halide Lamp, 400 W Lamp, 120/208/240/277/480 VAC, Pulse, 1 Ballast Factor
Sylvania M400/SUPER5-PS-KIT/47400 5-Tap Magnetic Core and Coil Ballast, HID Metal Halide Lamp, 400 W Lamp, 120/208/240/277/480 VAC, Pulse, 1 Ballast Factor
SKU: SYLM400/SUPER5-PS-KIT
Manufacturer Part Number: 47400
UPC: 046135474002
Documents
Features
- CWA Circuit
- ANSI code M155 or M135
- Install in accordance with National Electric Codes
- Ground ballast core and metallic case of capacitor and igniter
- 1/1.7/1.9/2.2/3.8 A amperage rating, Metal HID M400/PS lamp type
Specification
| Frequency Rating | 60 |
|---|---|
| Lamp Type | Metal Halide |
| Lamp Wattage | 400 W |
| Minimum Starting Temperature | -29 |
| Number of Lamps | 1 |
| Power Factor | 0.9 |
| Start Type | Pulse |
| Total Harmonic Distortion | <20% |
| Voltage Rating | 120/208/240/277/480 VAC |
| Wattage | 452 W |
| Ballast Factor | 1 |
| Includes | Core, Coil, Capacitor, Igniter, Brackets, Mounting Hardware |
| Standard & Approvals | cRUus Listed |
| Dimensions | 8.5 in L x 5.5 in W x 6.969 in H |
| Amperage Rating | 3.8 A |
| Application | For metal halide lamp |
| Type | 5-Tap |
