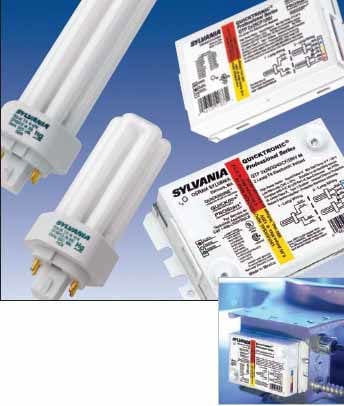

Sylvania QUICKTRONIC® QTP-2X26/CF/UNV-DM/51833 Dual Entry Low Power Electronic Fluorescent Ballast, CFL Lamp, 26 W Lamp, 120 VAC, Rapid, 1 Ballast Factor

Selected 51833Sylvania QUICKTRONIC® QTP-2X26/CF/UNV-DM/51833 Dual Entry Low Power Electronic Fluorescent Ballast, CFL Lamp, 26 W Lamp, 120 VAC, Rapid, 1 Ballast Factor
51833Sylvania QUICKTRONIC® QTP-2X26/CF/UNV-DM/51833 Dual Entry Low Power Electronic Fluorescent Ballast, CFL Lamp, 26 W Lamp, 120 VAC, Rapid, 1 Ballast Factor

Documents

Short Description

QUICKSENSE® end of lamp life sensing technology Helps to protect against overheated bases and sockets, as well as cracking of the glass Wall. QUICKSENSE® ballast technology uses dynamic end of lamp life sensing to avoid false shutdowns caused by some static sensing methods and will auto reset when the end of life lamps are replaced with new ones.

Features

  • Dual entry, color coded connectors
  • QUICKSENSE® ballast technology
  • Push-in connectors
  • High power factor, 18 AWG solid copper wire only
  • Low harmonic distortion
  • Small size and Lightweight
  • Lead free solder, printed circuit board and manufacturing process
  • Lamp frequency is greater than 40 kHz
  • Less than 1.7 lamp crest factor
  • Series circuit

Specification

Frequency Rating
50/60
Lamp Wattage
26 W
Material
Metal
Mounting Type
Remote
Number of Lamps
2
Power Factor
0.98
Start Type
Rapid
Thermal Protection
Class P
Total Harmonic Distortion
0.1
Voltage Rating
120 VAC
Wattage
54 W
Ballast Factor
1
Enclosure Type
NEMA 1
Standard & Approvals
UL/cUL Listed, CSA Approved, RoHS compliant
Application
For recessed downlights, wall sconces, ceiling fixtures, commercial, retail, hospitality and institutional
Temperature Range
75
Minimum Starting Temperature
-5
Lamp Type
DD/E/T
Dimensions
4.95 in L x 2.37 in W x 1.1 in H
Amperage Rating
0.5/0.22 A
