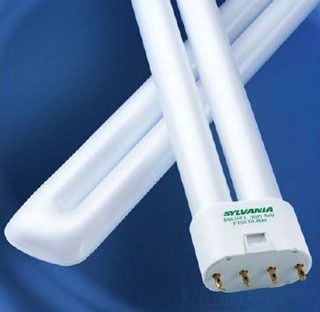

Sylvania DULUX® L ECOLOGIC® FT24DL/835/ECO/20580 Long Compact Fluorescent Lamp, 24 W, 4-Pin 2G11 CFL Lamp, T5 Shape, 1800 Lumens

Selected Sylvania DULUX® L ECOLOGIC® FT24DL/835/ECO/20580 Long Compact Fluorescent Lamp, 24 W, 4-Pin 2G11 CFL Lamp, T5 Shape, 1800 Lumens
Sylvania DULUX® L ECOLOGIC® FT24DL/835/ECO/20580 Long Compact Fluorescent Lamp, 24 W, 4-Pin 2G11 CFL Lamp, T5 Shape, 1800 Lumens

Documents

Short Description

Sylvania DULUX L T5 lamps are high lumen, single-ended twin-tube lamps that provide lumen outputs similar to 2', 3' and 4' linear fluorescent lamps, yet are half the length. with lumen outputs up to 4800 and lamp efficacies up to 87 lumens per watt, these compact lamps can be used in indirect as well as direct applications. QUICKTRONIC® ballasts are available to operate FT18DL, FT24DL, FT36DL, FT40DL/RS and FT55DL lamps. the QUICKSENSE® circuitry in these ballasts provides the end-of-life protection required by NEMA* for these lamps. the quick 60® warranty program applies to DULUX L lamp/ QUICKTRONIC® ballasts installations.

Features

  • Total harmonic distortion ballast dependent
  • For use on magnetic, electronic and dimming ballasts
  • High lumen single-ended twin-tube lamps
  • Operate on OSRAM QUICKTRONIC® systems with QUICKSENSE® circuitry
  • Excellent color rendering
  • 2 x 2 ft fixture provides equal lumen output to a 2 x 4 ft fixture
  • Electronic and dimming ballast

Specification

Lamp Base
2G11
Lamp Finish
Phosphor Coated
Lamp Type
CFL
Lumens
1800 Lumens
Shape
F (T5)
Type
Long
Wattage
24.7 W
Application
Commercial/Residential Applications, Indirect Fixtures, Landscape Lighting, Portable Sports Lighting, Recessed and Surface Mounted Fixtures, Sign Lighting, Stage and Set Lighting, Task Lighting, Wall Sconces and Wall Washing Fixtures
Standard & Approvals
ANSI C78.901 - 2001, RoHS Compliant
Average Life
12000
Ballast Type
Electronic
Color Rendering Index (CRI)
80
Color Temperature
3500
Designation
FT24DL/835/ECO
Dimensions
0.63 in Dia x 12.9 in L x 1.6 in W
