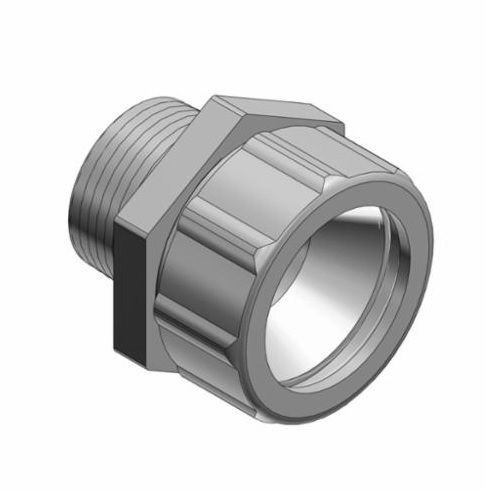

T&B® 2557 Ranger® Liquidtight Strain Relief Cord Connector, 1-1/4 in Trade, 1.375 to 1.485 in Cable Openings, Malleable Iron, Zinc Plated

Selected T&B® 2557 Ranger® Liquidtight Strain Relief Cord Connector, 1-1/4 in Trade, 1.375 to 1.485 in Cable Openings, Malleable Iron, Zinc Plated
T&B® 2557 Ranger® Liquidtight Strain Relief Cord Connector, 1-1/4 in Trade, 1.375 to 1.485 in Cable Openings, Malleable Iron, Zinc Plated

Documents

Short Description

For over 100 years the T&B® brand has been recognized as the leading brand of electrical fittings. Industry standards such as Liquidtight® fittings, Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.

Features

  • Meets coast guard CG293
  • Neoprene bushing makes liquidtight installation, applies pressure against cable the full length of bushing
  • Buna-N O-ring
  • Suitable for use in hazardous locations where general purpose equipment is specifically permitted by NEC 501-4(B)
  • 13/16 in thread length
  • 1-1/4 in throat diameter
  • Liquidtight
  • S/SO/SV/ST/STD/SJ/SJO/SJT/SJTO/SVD cable
  • Electro Zinc Plated With Chromate Coated

Specification

Material
Malleable Iron
Series
Ranger®
Temperature Rating
105 deg C
Trade Size
1-1/4 in
Type
Strain Relief
Application
Used to connect flexible cord or power cable to a box or enclosure and provide adequate strain relief
Standard & Approvals
UL E13938 Listed, CSA Certified, UL 514B, CSA C22.2 No. 18.3, NFPA 70-2008 (ANSI), RoHs Compliant
Dimensions
2-1/2 in Dia x 2-5/16 in L
Cable Openings
1.375 - 1.485 in
Cable Type
S/SO
Color
Metallic
Connection Type
Threaded
Finish
Zinc Plated
