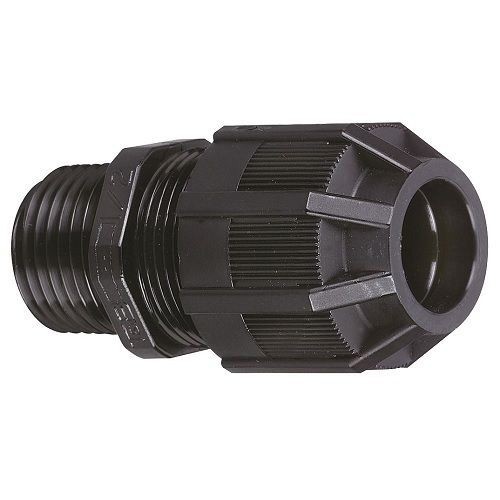

T&B® 2930NM Ranger® Liquidtight Strain Relief Cord Connector, 3/4 in Trade, 1/8 to 3/8 in Cable Openings, Nylon 6.6/Polyamide

Selected T&B® 2930NM Ranger® Liquidtight Strain Relief Cord Connector, 3/4 in Trade, 1/8 to 3/8 in Cable Openings, Nylon 6.6/Polyamide
T&B® 2930NM Ranger® Liquidtight Strain Relief Cord Connector, 3/4 in Trade, 1/8 to 3/8 in Cable Openings, Nylon 6.6/Polyamide

Documents

Short Description

The Ranger® Series Steel Liquidtight Connector takes twice the cable range of most ordinary strain relief connectors. T&B’s Ranger Connectors enable you to reduce your inventory and save time with one connector that can do the work of two.

Features

  • Extended range with superior strain relief
  • Reduced overall size, fits into tighter spaces
  • Gland nut designed to restrict cable bending
  • Suitable for ordinary, wet or dry locations
  • 0.63 in thread length
  • 0.79 in throat diameter
  • Liquidtight
  • IP65 rating, UV resistant
  • Meets coast guard CG293
  • UL 94-V2 flammable rating
  • Nonmetallic means corrosion-resistance
  • Nylon gland and grip, oil-resistant elastomer bushing
  • Non-Metallic
  • S/SO/SV/ST/STD/SJ/SJO/SJT/SJTO/SVD cable
  • Electro Zinc Plated With Chromate Coated

Specification

Material
Polyamide
Minimum Order Qty
1
Order Interval
1
Cable Openings
1/8 - 3/8 in
Cable Type
S/SO
Color
Black
Connection Type
NPT
Dimensions
1-13/32 in Dia x 2-3/16 in L
Series
Ranger®
Temperature Rating
-34 to 105 deg C
Trade Size
3/4 in
Type
Strain Relief Straight
Application
For passing a cord cable into an enclosure through a bulkhead
Standard & Approvals
UL E13938 Listed, CSA Certified, RoHs Compliant
Catalog ID
T-B2930NM
