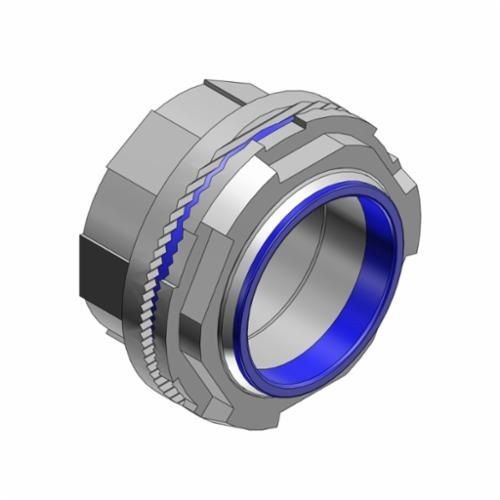

T&B® H300A Hub Connector With Thermoplastic Insulated Throat, 3 in, For Use With Rigid/IMC Conduits, Aluminum

Selected T&B® H300A Hub Connector With Thermoplastic Insulated Throat, 3 in, For Use With Rigid/IMC Conduits, Aluminum
T&B® H300A Hub Connector With Thermoplastic Insulated Throat, 3 in, For Use With Rigid/IMC Conduits, Aluminum

Documents

Short Description

Never before has a single hub fit like this one. designed for unequalled performance. the innovative engineering of the T&B® hub will, quite simply, raise your performance expectations for threaded hubs. Look for the distinctive blue color to ensure the quality of a Thomas & Betts fitting.

Features

  • Sealing ring and groove with innovative profile outperforms standard ’O’ ring design
  • Sealing ring is captive before installation and resists buckling or slipping during installation
  • The seal groove is designed for optimum compression of the sealing ring
  • The sealing ring is designed to provide a complete 360 deg seal, even when the conduit is not perpendicular with the enclosure
  • Locknut design with peripheral slots and a hexagonal/angled spline spaced every 30 deg enables easy application of torque with wrench or hammer and screwdriver
  • Sharper and deeper teeth on locknut and body designed for a more penetrating bite for improved bonding to the enclosure
  • Hexagonal/splined body design for fast, easy installation with wrench or hammer and screwdriver
  • Precision machined tapered threads designed to create watertight union
  • Insulated throat molded from 105 deg C rated thermoplastic with a flammability rating of 94V-O
  • Nitrile (Buna N) sealing ring
  • 2-31/32 in throat Dia
  • 1/4 max panel thickness

Specification

Material
Aluminum
Size
3 in
Suitable For Use With
Rigid/IMC Conduit
Application
To connect threaded metal conduit to a threadless opening in a box or enclosure
Standard & Approvals
UL Listed, CSA Certified use in hazardous locations Class I, Division 2, Class II, Groups E, F and G, Class III, Division 1, 2 and Type 4, RoHS Complaint
Dimensions
4-3/8 in W x 2-21/32 in H
