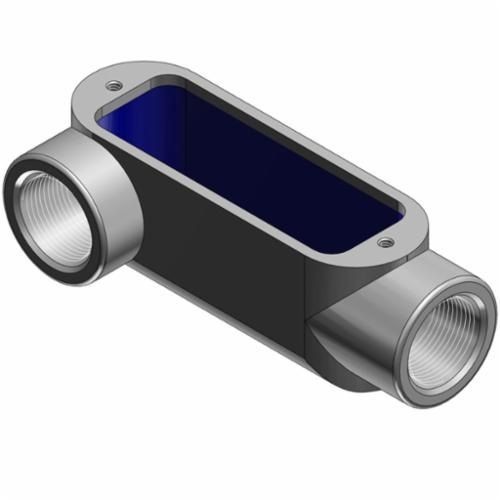

T&B® BlueKote® LR57 Type LR Conduit Body, 1-1/2 in Hub, Form 7 Form, 26.4 cu-in Capacity, Iron, Epoxy Powder Coated/Zinc Plated

Selected T BLR57
T BLR57

Documents

Short Description

For over 100 years the T&B brand has been recognized as the leading brand of electrical fittings. Industry standards such as Liquidtight® fittings Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.

Features

  • BlueKote Teflon based internal finish provides a slick, easy-glide internal surface which significantly lowers the amount of force necessary to pull wires
  • Eliminates rough internal surfaces that can cut into cable jacket, insulation and conductors during pulling and also reduces installation time and risk of installer strain
  • Triple-layer protection including two layers of epoxy coating which stops corrosion in its tracks
  • Bodies are designed with a flat back, allowing more cubic inch capacity
  • Conduit bodies make 90 deg bends in conduit runs, act as mounting outlets for wiring devices and lighting fixtures and to provide access to conductors for maintenance and future system changes
  • Zinc plated With Epoxy Powder Coated

Specification

Hub Size
1-1/2 in
Material
Iron
Number of Hubs
2
Minimum Order Qty
1
Order Interval
1
Color
Gray
Connection Type
Threaded
Finish
Zinc Plated
Form
7
Type
Type LR
Dimensions
7.9 in L x 3.8 in W x 2.6 in H
Catalog ID
T-BLR57
Standard & Approvals
UL E2969 Listed, RoHS Compliant
Application
Used to connect sections, act as pull outlets when conductors are being installed and provide easy access for splices in branch conductors
Capacity
26.4 cu-in
