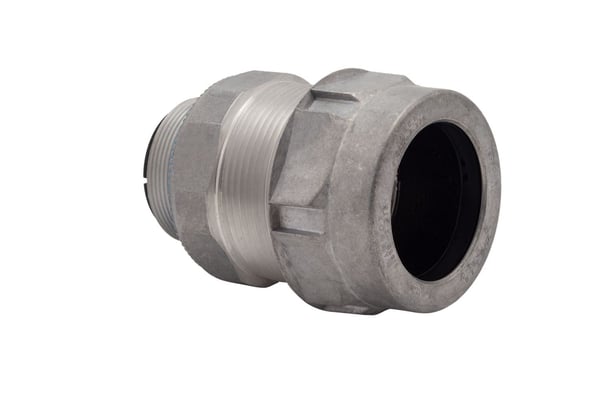

T&B® Fittings Star Teck Extreme® STE200 Teck Cable Connector, 2 in Trade, 1.825 to 2.375 in Cable Openings, Aluminum
T&B® Fittings Star Teck Extreme® STE200 Teck Cable Connector, 2 in Trade, 1.825 to 2.375 in Cable Openings, Aluminum
SKU: T-BSTE200
Manufacturer Part Number: STE200
EAN: 5414363162032
UPC: 786210930404
Short Description
Features
- Patented power grip grounding ring
- Removable armor stop for greater cable ranges
- Elastomeric collar ring/bushing for greater cable ranges
- Built-in jacket stripping gauge on gland nut
- Gland nut can be tightened with hammer and screwdriver
- Provides means for passing armored, metal clad, jacketed cable through a bulkhead or enclosure in hazardous areas
- Form a mechanical grip and water and/or oil resistant seal for cord
- Provide grounding continuity of cable armor
- Designed to accommodate a broad range of cables
- Each hub range overlaps the adjacent hub range, thereby minimizing the possibility of mismatched cables and fittings in the field
- Built-in sealing device
- 1-3/4 in L strip
- 1600 in-lb gland torque
- 1.665 to 2.215 in cable range over armor
- 1.64 in Dia throat with end stop
- 1.995 in Dia throat without end stop
Specification
| Material | Aluminum |
|---|---|
| Series | STE |
| Trade Size | 2 in |
| Application | Ordinary Locations |
| Standard & Approvals | UL File No. E38947, CSA 23086, CSA 4484 |
| Dimensions | 3.6 in Dia x 4.12 in L |
| Cable Openings | 1.825 to 2.375 in |
| Cable Type | ACWU/JMC/MC/TECK |
| Color | Silver |
| Connection Type | NPT |
| EANUCC13 | 5414363162032 |
