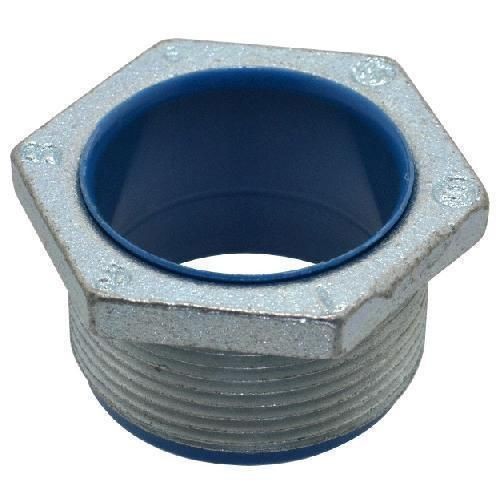

T&B® CHASE® 1946 Bushed Conduit Nipple, 1-1/2 in, For Use With Rigid/IMC Conduits, Malleable Iron, Chromate Coated/Electro-Zinc Plated

Selected T&B® CHASE® 1946 Bushed Conduit Nipple, 1-1/2 in, For Use With Rigid/IMC Conduits, Malleable Iron, Chromate Coated/Electro-Zinc Plated
T&B® CHASE® 1946 Bushed Conduit Nipple, 1-1/2 in, For Use With Rigid/IMC Conduits, Malleable Iron, Chromate Coated/Electro-Zinc Plated

Documents

Short Description

Thomas & Betts pioneered many industry standard rigid fittings including Chase® nipples and Erickson® couplings. The innovation continues with BlueKote® conduit bodies and many new features and products for ordinary and hazardous locations.

Features

  • Male NPS thread/hex head connection
  • 1-3/32 in thread length
  • Nylon insulator curled over to bush conductors entering/leaving at any angle
  • Reduce wire pull effort, protect threads against damage in handling
  • Rugged construction

Specification

Material
Malleable Iron
Size
1-1/2 in
Suitable For Use With
Rigid/IMC Conduit
Type
Bushed
Application
For effectively bush factory or field-punched, cut, or drilled holes in metal boxes or enclosures and to couple boxes back-to-back
Standard & Approvals
UL 514B, UL E23018 Listed, CSA C22.2 No 18.3 Certified, Federal Specification W-F-408, ANSI C80.4/NFPA 70-2008, NEMA FB-1, RoHS Complaint
Finish
Zinc Electroplated/Chromate Coated
Dimensions
13/16 in Dia x 2-1/16 in L
