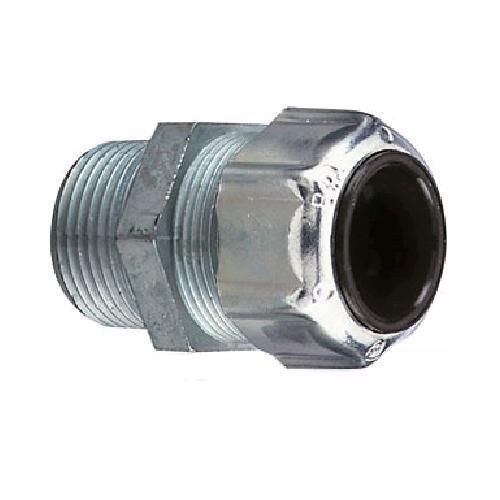

T&B® 2564 Ranger® Liquidtight Strain Relief Cord Connector, 1-1/2 in Trade, 1.187 to 1.375 in Cable Openings, Die Cast Zinc, Zinc Plated

Selected FilesT B2564
FilesT B2564

Documents

Short Description

For over 100 years the T&B® brand has been recognized as the leading brand of electrical fittings. Industry standards such as Liquidtight® fittings, Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.

Features

  • Meets coast guard CG293
  • Extended range with superior strain relief
  • Gland nut designed to restrict cable bending
  • Reduced overall size, fits into tighter spaces
  • Form a mechanical grip and water- and/or oil-resistant seal for cord and unarmored or jacketed armored round cables
  • Form a non-slip connection or termination for flexible cord, cable (armored or unarmored)
  • Provide grounding continuity of cable armor
  • Liquidtight
  • Steel gland and neoprene bushing
  • 11/16 in thread length
  • 1-17/16 in throat diameter
  • S/SO/SV/ST/STD/SJ/SJO/SJT/SJTO/SVD cable
  • Electro Zinc Plated With Chromate Coated

Specification

Material
Die Cast Zinc
Series
Ranger®
Temperature Rating
105 deg C
Trade Size
1-1/2 in
Type
Strain Relief
Application
For passing a cord cable (armored or unarmored) into an enclosure, through a bulkhead or into a rigid conduit
Standard & Approvals
UL E13938 Listed, CSA Certified, RoHs Compliant
Dimensions
2-1/4 in L x 2-17/16 in W
Cable Openings
1.187 - 1.375 in
Cable Type
S/SO
Color
Metallic
Connection Type
Threaded
Finish
Zinc Plated
