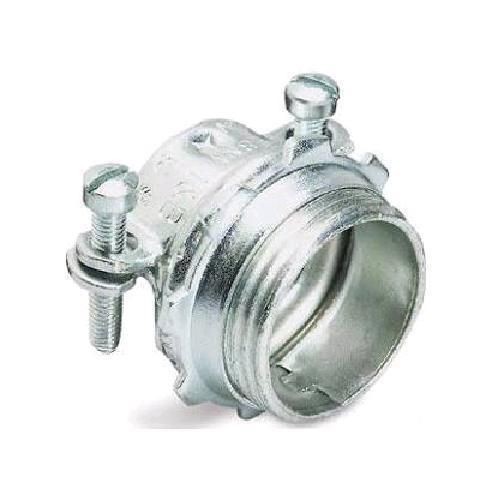

T&B® 3308 2-Screw Non-Insulated Cable Connector With Slotted Screw, 2-1/2 in Trade, 1.15 to 1.98 in Cable Openings, Malleable Iron, Electro-Zinc Plated

Selected T&B® 3308 2-Screw Non-Insulated Cable Connector With Slotted Screw, 2-1/2 in Trade, 1.15 to 1.98 in Cable Openings, Malleable Iron, Electro-Zinc Plated
T&B® 3308 2-Screw Non-Insulated Cable Connector With Slotted Screw, 2-1/2 in Trade, 1.15 to 1.98 in Cable Openings, Malleable Iron, Electro-Zinc Plated

Short Description

For over 100 years the T&B brand has been recognized as the leading brand of electrical fittings. Industry standards such as Liquidtight® fitting s Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.

Features

  • Rounded cable grip and smooth bushing protect the cable sheath and wire insulation
  • Since saddle is threaded, screws do not travel or extend beyond the connector body as it is clamped to the cable
  • An extra lip on the saddle closes the unused part of the connector opening
  • Nonmetallic service entrance cable

Specification

Material
Malleable Iron
Minimum Order Qty
1
Order Interval
1
Cable Openings
1.15 - 1.98 in
Cable Type
Flexible
Catalog ID
T-B3308
Color
Metallic
Connection Type
Straight
Dimensions
1-29/32 in L x 3-5/16 in W x 2-25/32 in H
Finish
Zinc Plated
Trade Size
2-1/2 in
Type
Non-Insulated
Application
Used to connect non-metallic sheathed cable and flexible cord to a box or an enclosure
Standard & Approvals
UL E23013 Listed, CSA 2884 Certified, RoHs Compliant
