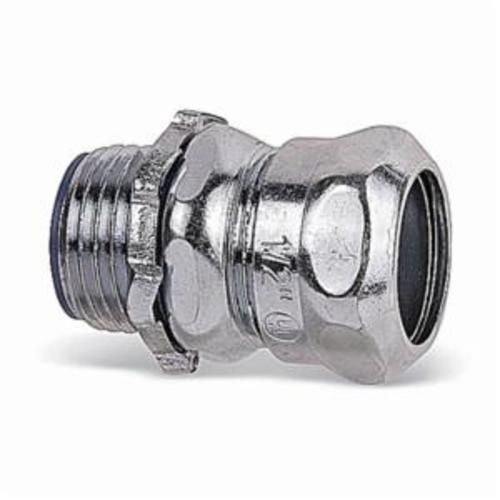

T&B® 5123 Insulated Compression Connector, 1/2 in Trade, For Use With EMT Conduits, Steel, Chromate Coated/Electro-Zinc Plated

Selected 5123T&B® 5223 Insulated Compression Connector, 3/4 in Trade, For Use With EMT Conduits, Steel, Chromate Coated/Electro-Zinc Plated
5123T&B® 5223 Insulated Compression Connector, 3/4 in Trade, For Use With EMT Conduits, Steel, Chromate Coated/Electro-Zinc Plated

Documents

Short Description

T&B® brand has been recognized as the leading brand of electrical fittings. Industry standards such as Liquidtight® fittings, Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.

Features

  • Rugged all steel construction
  • Rings designed to positively bond conduit to fitting; unique locknut design provides effective bond between fitting and box or enclosure; ground continuity is assured
  • Nylon insulator firmly secured in place-protects conductors, reduces wire pulling effort and prevents thread damage in handling
  • Thermoplastic insulator
  • Rain tight construction
  • Zinc Electroplated

Specification

Material
Steel
Minimum Order Qty
1
Order Interval
1
Finish
Zinc Plated
Suitable For Use With
EMT Conduit
Trade Size
1/2 in
Type
Insulated
Application
To connect and effectively bond electrical metallic tubing to a box or an enclosure
Standard & Approvals
UL E16592 Listed, CSA Certified, RoHS Compliant
Dimensions
1-21/32 in L
Diameter
1-3/64 in
Catalog ID
T-B5123
