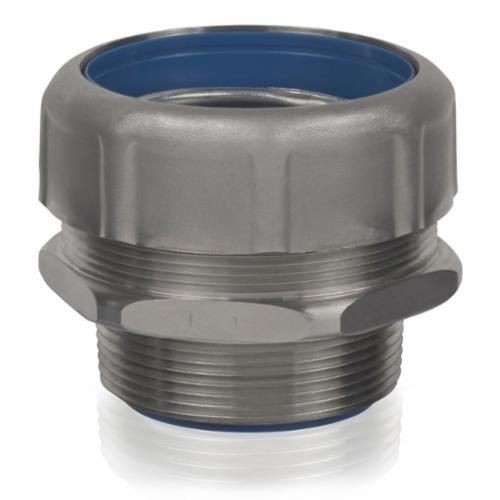

T&B® Industrial Fitting Safe Edge® 5332SST6 5300SST6 Insulated NPT Thread Standard Straight Conduit Connector With Dura Plate Ground Cone, 1/2 in Trade, 316 Stainless Steel

Selected T&B® Industrial Fitting Safe Edge® 5332SST6 5300SST6 Insulated NPT Thread Standard Straight Conduit Connector With Dura Plate Ground Cone, 1/2 in Trade, 316 Stainless Steel
T&B® Industrial Fitting Safe Edge® 5332SST6 5300SST6 Insulated NPT Thread Standard Straight Conduit Connector With Dura Plate Ground Cone, 1/2 in Trade, 316 Stainless Steel

Short Description

Corrosive environments can cause traditional metallic fittings to corrode and require replacement. The new stainless steel T&B® Liquidtight Fittings are constructed of type 316 stainless steel to resist corrosion, while offering high strength, UV resistance, and extreme performance up to 105 deg C. Look for the distinctive blue insulator and sealing ring for the assurance of T&B® quality. For applications above 150 deg C, Thomas & Betts offers high temperature versions with black insulators and sealing rings. These fittings will include duraplated ground cones as well as type 316 stainless steel.

Features

  • Stronger and more UV resistant than non-metallic fittings
  • Insulated throat protect wire jacket from damage
  • Ingress protection ratings aligned with industrial enclosures
  • Safe Edge® ground cones provide superior bonding
  • Double bevel sealing ring eases assembly and insures liquidtight performance
  • Heat curled insulators protect wire sheathing from damage
  • Ideal for food and beverage, pharmaceutical, petrochemical, wastewater processing, salt water and other corrosive environments

Specification

Material
316 Stainless Steel
Series
5300SST6
Suitable For Use With
Liquidtight Flexible Metallic Conduit
Trade Size
1/2 in
Type
Insulated NPT Thread Standard Straight
Application
For connecting flexible metallic liquidtight conduit to a box or enclosure
Standard & Approvals
ARRA, Buy American Act, RoHS Compliant, UL 514B File No. E23018, UL 128B, CSA, CE Certified, Federal Specification A-A 50552
Dimensions
1.74 in L x 1.33 in W
Cable Openings
1/2/2025 12:00:00 AM
Color
Metallic
