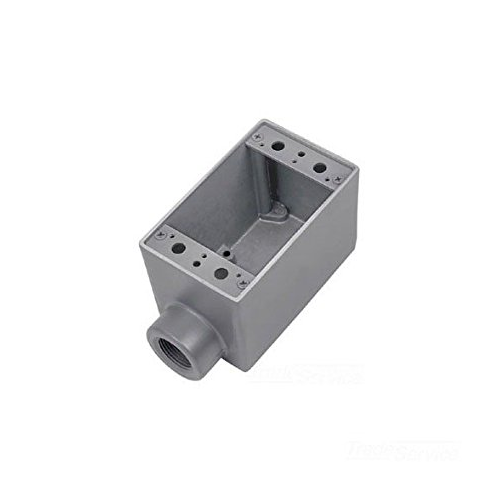

T&B® ADFS-2 Type FS Dead End Deep Style Device Box, Die Cast Aluminum, 31.3 cu-in Capacity, 1 Gangs, 1 Outlets, 1 Knockouts, 4-9/16 in H x 2-13/16 in W x 3-1/16 in D
T&B® ADFS-2 Type FS Dead End Deep Style Device Box, Die Cast Aluminum, 31.3 cu-in Capacity, 1 Gangs, 1 Outlets, 1 Knockouts, 4-9/16 in H x 2-13/16 in W x 3-1/16 in D
SKU: R-DADFS-2
Manufacturer Part Number: ADFS-2
UPC: 042269301603
Documents
Features
- Copper-free aluminum, stainless steel cover springs and hinge pins provide increased corrosion resistance
- Die-cast construction, boxes with securely fastened mounting plates and industrial designed covers combine to produce a rugged protective enclosure for devices on industrial and OEM applications
- Clean cover edges provide good gasket sealing
- Precision NPT threaded hubs allow trouble-free field installation for rigid or IMC conduit
- Clear UL, CSA and cubic content markings speed approval by inspectors
- Boxes - external hub design provides increased wiring room
- Covers ship complete with gaskets and screws
- Industrial grade FS/FD device boxes and raintight covers protect wiring devices, switches, electronic components, and terminal blocks in dry, damp and wet locations
- Spacious, accessible wiring chamber provides a convenient location to maintain or change a system, pull conductors and make splices
- Junction for branch conduits
- Aluminum boxes can be used with steel rigid conduit
- (1) one end hub
- Die-Cast Aluminum material
Specification
| Hub Size | 3/4 in |
|---|---|
| Hub Style | NPT |
| Material | Aluminum |
| Mounting Type | Surface |
| Number of Gangs | 1 |
| Number of Knockouts | 1 |
| Number of Outlets | 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Cable Entry | Hub |
| Capacity | 31.3 cu-in |
| Catalog ID | R-DADFS-2 |
| Dimensions | 4-9/16 in H x 2-13/16 in W x 3-1/16 in D |
| Finish | Aluminum Lacquer |
| Series | FS |
| Shape | Deep |
| Type | Dead-End Industrial Grade |
| Application | For protecting wiring devices, switches, electronic components, and terminal blocks in dry, damp and wet locations |
| Standard & Approvals | UL E28688, CSA Certified, Federal Specification W-C-586, RoHS Compliant |
