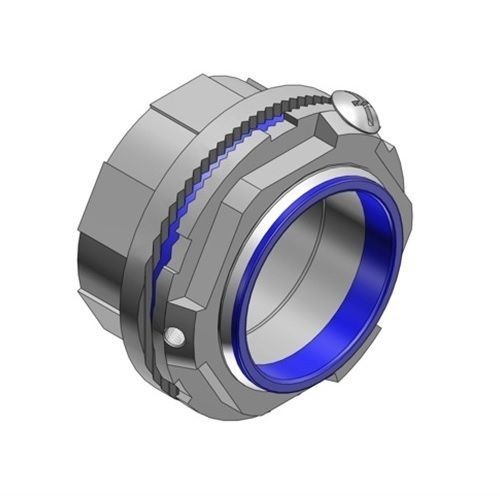

T&B® H150GR-TB Grounding Hub With Thermoplastic Insulated Throat, 1-1/2 in Trade, Thread Connection, Locknut Installation, Zinc
T&B® H150GR-TB Grounding Hub With Thermoplastic Insulated Throat, 1-1/2 in Trade, Thread Connection, Locknut Installation, Zinc
SKU: T-BH150GR-TB
Manufacturer Part Number: H150GR-TB
UPC: 786210913711
Documents
Features
- Suitable for hazardous locations use in class I, Division 2; class II, Division 1and2; class III, Division 1 and 2 per NEC 501-4(b); 502-4 (a) and 503-3 (a)
- Suitable for hazardous locations use in class II, groups E, F, G and class III locations per CEC 18-202; 18-252; 18-302; 18-352
- Thomas and Betts grounding hub has a trade size of 1-1/2 inches and is made durable zinc
- It comes with molded thermoplastic insulating throat to protect wire abrasion and an embedded nitrile ring to ensure watertight seal
- Hub includes hexagonal/angled locknut with 30 degree space between spline enables easy application of torque by wrench or screwdriver that ensures quick/easy installation
Specification
| Material | Zinc |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | T-BH150GR-TB |
| Connection Type | Threaded |
| Dimensions | 2-3/4 in Dia x 1-7/8 in L |
| Specifications | 1/4 in Throat Dia |
| Trade Size | 1-1/2 in |
| Application | For hazardous locations |
| Standard & Approvals | UL E23018, CSA Certified, RoHS Compliant |
| Includes | Thermoplastic Insulating Throat and Nitrile (BUNA-N) Sealing Ring |
