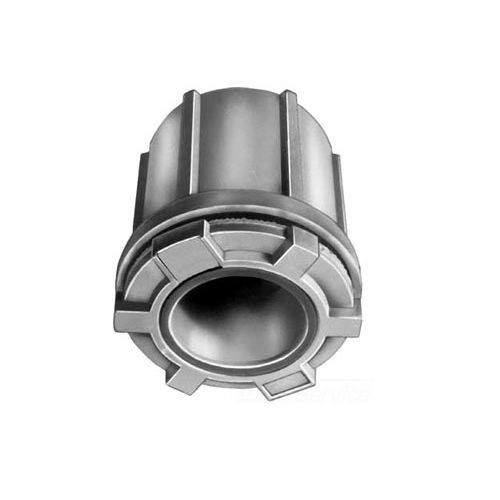

T&B® CHASE® HTZ5 Conduit Hub With Insulated Throat, 1-1/2 in, For Use With Threaded IMC/Rigid Conduits, Die Cast Zinc, Aluminum Lacquered

Selected T&B® CHASE® HTZ5 Conduit Hub With Insulated Throat, 1-1/2 in, For Use With Threaded IMC/Rigid Conduits, Die Cast Zinc, Aluminum Lacquered
T&B® CHASE® HTZ5 Conduit Hub With Insulated Throat, 1-1/2 in, For Use With Threaded IMC/Rigid Conduits, Die Cast Zinc, Aluminum Lacquered

Documents

Short Description

For over 100 years the T&B® brand has been recognized as the leading brand of electrical fittings. industry standards such as Liquidtight® fittings, Erickson® couplings and many others are registered trade marks. the innovation continues with numerous products and features for both ordinary and hazardous locations.

Features

  • Chase® design provides maximum space for wiring in the box
  • Locking nipple should be knurled for positive rounding and be special flush design for extra wiring room
  • 1/4 in panel width
  • Plastic insulated throat, precision cast and machined surfaces permit safer wire pulling
  • Captive o-ring fits snugly in groove preventing loss and fumbling with parts
  • Knurled inner face of locking nipple provides 360 degrees of locking and bites through box wall to ensure grounding
  • Locking nipple has tightening lugs on two planes for easier assembly in hard to reach field conditions
  • Grounding hubs have a ground screw located within the enclosure providing a tamper proof ground for device
  • Locking nipple design permits replacement of the box without disassembling the installation
  • Buna N o-ring
  • Plastic insulating sleeves
  • Suitable for use where the system is normally hosed down (NEMA 4) for cleaning
  • Suitable for use in wet locations
  • 1-1/2-11-1/2 NPT thread size
  • 1-29/32 in mounting hole size

Specification

Material
Die Cast Zinc
Size
1-1/2 in
Suitable For Use With
Rigid/IMC Conduit
Finish
Aluminum Lacquer
Dimensions
2-5/8 in Dia
Standard & Approvals
UL E28720 Listed, CSA Certified, RoHS Complaint
Application
Provide raintight connections between junction boxes or between a junction box and conduit system while maintaining ground continuity
Series
HTZ
