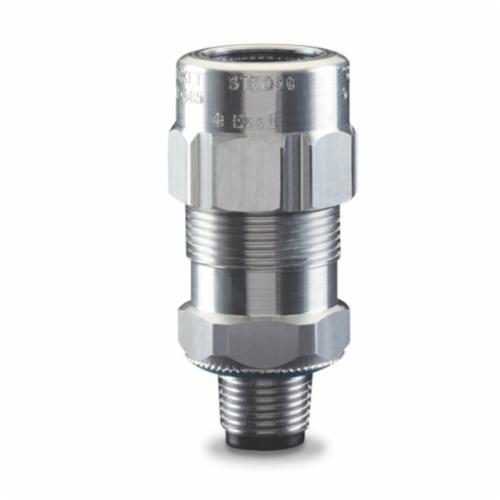

T&B® Fittings Star Teck Extreme® STE100 Teck Cable Connector, 1 in Trade, 0.95 to 1.375 in Cable Openings, Aluminum
T&B® Fittings Star Teck Extreme® STE100 Teck Cable Connector, 1 in Trade, 0.95 to 1.375 in Cable Openings, Aluminum
SKU: T-BSTE100
Manufacturer Part Number: STE100
UPC: 786210822747
Short Description
Features
- Patented powergrip grounding ring
- Removable armor-stop for greater cable ranges
- Elastomeric collar ring/bushing for greater cable ranges
- Built-in jacket stripping gauge on gland nut
- Gland nut can be tightened with hammer and screwdriver
- Provides means for passing armored, metal clad, jacketed cable through a bulkhead or enclosure in hazardous areas
- Form a mechanical grip and water and/or oil-resistant termination
- Provide grounding continuity of cable armor
- Designed to accommodate a broad range of cables
- Each hub range overlaps the adjacent hub range, thereby minimizing the possibility of mismatched cables and fittings in the field
- Built-in sealing device
- 1-1/4 in strip length
- 700 in-lb gland torque
- 0.87 - 1.295 in cable range over armor
- 0.785 in throat diameter with end stop
- 1.044 in throat diameter without end stop
Specification
| Material | Aluminum |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Connection Type | Compression |
| Trade Size | 1 in |
| Dimensions | 2.3 in Dia x 3.02 in L |
| Catalog ID | T-BSTE100 |
| Cable Openings | 0.95 - 1.375 in |
| Video | https://www.youtube.com/watch?v=DnG0sTGH0zs |
| Standard & Approvals | UL E38947, CSA 23086, 4484, RoHs Compliant |
| Application | For ordinary locations |
| Cable Type | MC/Teck |
