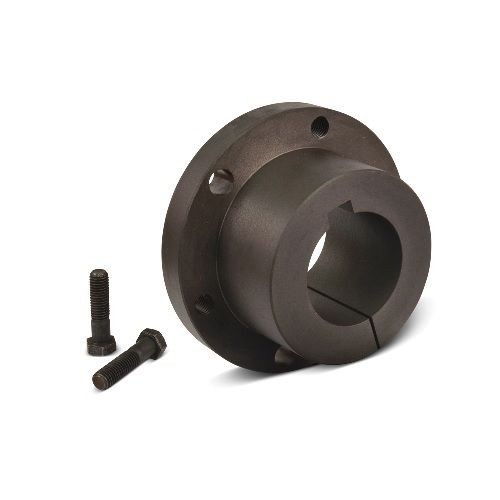

TB Wood's® Sure-Grip® QT118 Standard QD Bushing, 1-1/8 in Dia Bore, 1-5/8 in Dia Barrel, 2-1/2 in Dia Flange, 1-1/4 in OAL, Steel

Selected TBWQT118
TBWQT118

Documents

Short Description

Sure-Grip® quick detachable bushings are easy to install and remove. Split-through flange and taper provide a true clamp on the shaft that is equivalent to a shrink fit. All sizes except JA and QT have a set screw over the key to help maintain the bushing's position on the shaft until the cap screws are securely tightened. Versatile Sure-Grip® bushings permit the mounting of the same mating part on shafts of different diameters and the mounting of different sheaves on the same shaft using the same bushing.

Features

  • Size QT bushing
  • 6-hole drilling makes installation and removal quick and easy
  • Keyseat 180 deg from split, precise taper provides proper wedging action
  • Saw cut through flange and taper to provide a true clamp fit
  • Cap screws used to secure bushings to sheave and to remove bushing from sheave
  • Permit four-way mounting
  • Easy installation and removal

Specification

Keyway Size
1/4 x 1/8
Material
Steel
Number of Bolt Holes
2
Screw Size
1/4-20 x 1
Torque Rating
1750
Type
Standard
Barrel Diameter
1/5/2008 12:00:00 AM
Bolt Circle Diameter
2
Bore Diameter
1/1/2008 12:00:00 AM
Flange Diameter
2/1/2002 12:00:00 AM
Flange Thickness
1/4/2025 12:00:00 AM
Overall Length
1/1/2004 12:00:00 AM
