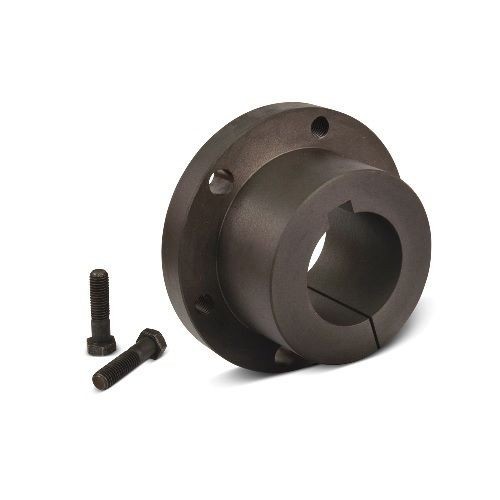

TB Wood's® Sure-Grip® SD114 Standard QD Bushing, 1-1/4 in Dia Bore, 2-3/16 in Dia Barrel, 3-3/16 in Dia Flange, 1.81 in OAL, Steel

Selected TBWSD114
TBWSD114

Documents

Short Description

Sure-Grip® quick detachable bushings are easy to install and remove. Split-through flange and taper provide a true clamp on the shaft that is equivalent to a shrink fit. All sizes except JA and QT have a set screw over the key to help maintain the bushing's position on the shaft until the cap screws are securely tightened. Versatile Sure-Grip® bushings permit the mounting of the same mating part on shafts of different diameters and the mounting of different sheaves on the same shaft using the same bushing.

Features

  • Size SD bushing
  • 6-hole drilling makes installation and removal quick and easy
  • Keyseat 180 deg from split, precise taper provides proper wedging action
  • Saw cut through flange and taper to provide a true clamp fit
  • Cap screws used to secure bushings to sheave and to remove bushing from sheave
  • Permit four-way mounting
  • Easy installation and removal

Specification

Keyway Size
1/4 x 1/8
Material
Steel
Number of Bolt Holes
3
Overall Length
1.81
Minimum Order Qty
1
Order Interval
1
Screw Size
1/4-20 x 1-7/8
Torque Rating
5000
Type
Standard
Catalog ID
TBWSD114
Bolt Circle Diameter
2.688
Flange Thickness
7/16/2025 12:00:00 AM
Flange Diameter
3/3/2016 12:00:00 AM
Bore Diameter
1/1/2004 12:00:00 AM
Barrel Diameter
2/3/2016 12:00:00 AM
