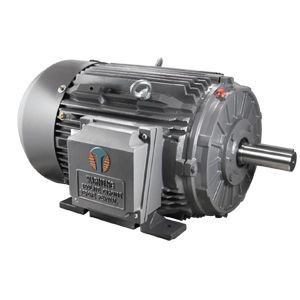

Techtop GR3-CI-TF-182T-4-B-D-3 AC Motor With Class H Stator, Totally Enclosed Fan Cooled Enclosure, 3 hp, 230/480 VAC, 60 Hz, 182T Frame, 1800 rpm Speed, Rigid Mount
Techtop GR3-CI-TF-182T-4-B-D-3 AC Motor With Class H Stator, Totally Enclosed Fan Cooled Enclosure, 3 hp, 230/480 VAC, 60 Hz, 182T Frame, 1800 rpm Speed, Rigid Mount
SKU: T-TGR3CITF182T4BD3
Manufacturer Part Number: GR3-CI-TF-182T-4-B-D-3
UPC: 201000000322
Documents
Features
- 1045 steel shaft (through 326T), 4140 (326T and up)
- Multi mount removable feet through 326T
- One-way sintered brass drain
- Corrosion resistant hardware
- Double lip oil seals
- Vacuum impregnated winding
- Tropicalization on stator winding
- Nipple seals between conduit box and body
- Rubber slinger
Specification
| Frame | 182T |
|---|---|
| Frequency Rating | 60 Hz |
| Insulation Class | Class F |
| Material | Cast Iron |
| Mounting Style | Rigid |
| Phase | 3 |
| Temperature Rating | 40 deg C |
| Amperage Rating | 7.95/3.97/9.6/4.8 A |
| Bearing Type | Ball |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Speed | 1800 RPM |
| Horsepower | 3 hp |
| Standard & Approvals | EISA Compliant, Class 1, Division 2, Groups A, B, C and D |
| Voltage Rating | 230/480 VAC |
| Torque Rating | 21.80 lb-ft |
| Service Factor | 1.25 |
