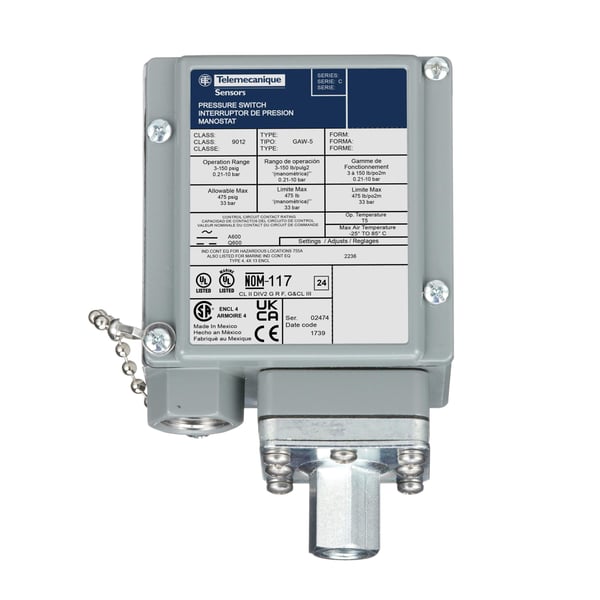

Telemecanique 9012GAW5 Electro-Mechanical Pressure Switch, 3 to 150 psi Pressure, 6 to 30 psi Differential, 1CO SPDT-DB Contact, Screw Clamp Connection, 6 A at 120 VAC/0.27 A at 250 VDC Contact
Telemecanique 9012GAW5 Electro-Mechanical Pressure Switch, 3 to 150 psi Pressure, 6 to 30 psi Differential, 1CO SPDT-DB Contact, Screw Clamp Connection, 6 A at 120 VAC/0.27 A at 250 VDC Contact
SKU: SQD9012GAW5
Manufacturer Part Number: 9012GAW5
EAN: 0785901024743
UPC: 785901024743
Short Description
Features
- High shock-resistance
- High set point stability
- Internal or external range adjustment
- No drain line required
- Dual numerical range scale (psi and kPa)
- Nitrile diaphragms and zinc plated steel flanges are standard
- NC-NO, SPDT-DB, form Z, snap action, silver nickel contact
- Hydraulic oil (-40 to 250 deg F), non-corrosive liquid, air, non-corrosive gas controlled fluid
- 1/4 in 18 NPTF conforming to UL 508 fluid connection
- Regulation between 2 thresholds, adjustable scale
- 4 screw terminal block
- Screw clamp terminal, 22 to 12 AWG electrical connection
- Zinc plated steel flange
- Nitrile (Buna-N) diaphragm
- Die cast aluminum alloy 380, 120 operating cycles/min (maximum)
- 1/2 in NPT conduit entrance cable entry
- Watertight, dusttight, oiltight and corrosion-resistant (indoor/outdoor) environmental conditions
Specification
| Differential | 6 to 30 psi |
|---|---|
| Pressure Rating | 3 to 150 psi |
| Operating Cycles | 5000000 cycles |
| Maximum Pressure | 475 psi |
| Housing Material | Aluminum |
| Connection Type | Screw Clamp |
| Diaphragm Material | Nitrile |
| Temperature Rating | -10 to 185 deg F |
| Contact Rating | 6 A at 120 VAC/0.27 A at 250 VDC |
| Dimensions | 3.5 in W x 2.63 in D x 5.55 in H |
| Contact Configuration | 1CO SPDT-DB |
| Type | Electro-Mechanical |
| Enclosure Type | NEMA 4/4X/13 |
