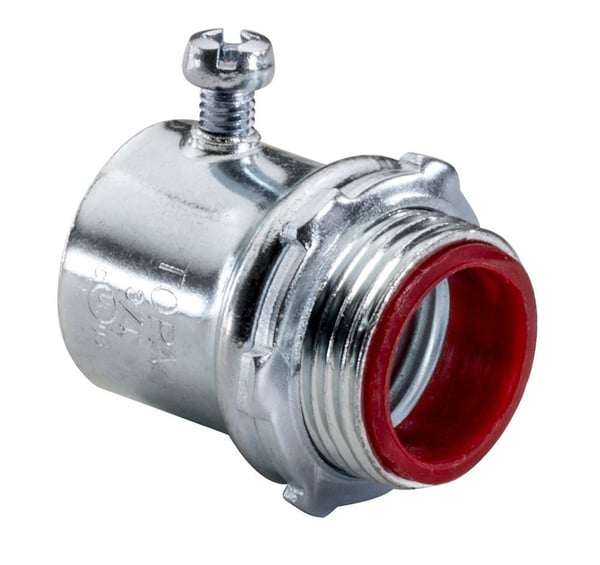

Southwire - Topaz 635SI Set Screw Connector With Insulated Throat, 1-1/2 in Trade, For Use With EMT Conduit to Box/Enclosure, Steel, Zinc Plated

Selected 634SITopaz® 635SI Set Screw Connector With Insulated Throat, 1-1/2 in Trade, For Use With EMT Conduit to Box/Enclosure, Steel, Zinc Plated
634SITopaz® 635SI Set Screw Connector With Insulated Throat, 1-1/2 in Trade, For Use With EMT Conduit to Box/Enclosure, Steel, Zinc Plated

Documents

Short Description

Topaz® EMT connectors with set screw type assembly provide secure concrete tight protection when taped. Insulated throat models offer superior protection against abrasion. Available in sizes from 1/2 to 4 in. Applications include use in dry locations to bond EMT thin wall conduit to electrical boxes or enclosures.

Features

  • Concrete tight when taped

Specification

Material
Steel
Minimum Order Qty
1
Order Interval
1
Catalog ID
TPZ635SI
Diameter
2-1/4 in
Dimensions
2-1/2 in L
Finish
Zinc Plated
Suitable For Use With
EMT Conduit to Box/Enclosure
Trade Size
1-1/2 in
Application
Dry Location Applications
Standard & Approvals
UL 514B, UL/cULus File No. E148720, Federal Specification No. A-A-50553, CSA Certified, NEMA/ANSI FB-1, Military Specification No. W-F-406D, W-F-406E, W-F-408D, W-S-610D
Includes
Steel Locknut
